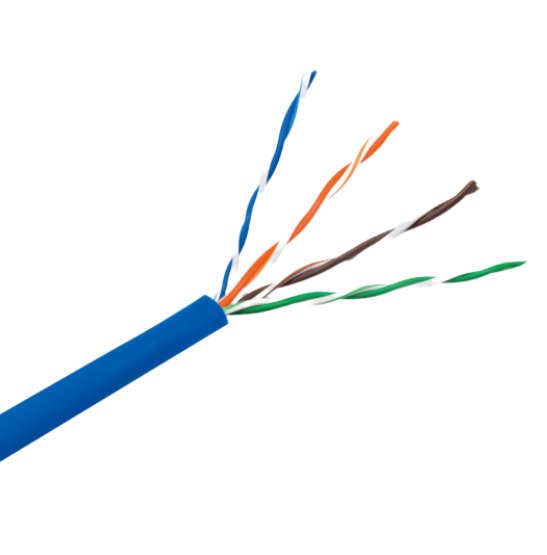

ABA Elite, Category 6 550MHz U/UTP Solid Cable CMR, 1000ft, Part# TUR2404N70XX
Cables

ABA Elite, Category 6 550MHz U/UTP Solid Cable CMR, 1000ft, Part# TUR2404N70XX

Availability: In Stock
$162.00
Wishlist Compare
The quality ABA Elite TUR2404N70XX Category 6 550MHz U/UTP Solid Cable CMR, have a high performance of transmission, High quality of safety property with Sweep Frequency up to 550MHz.


Description:

Cable Construction:

  • Conductors: 23 AWG solid bare annealed copper
  • Insulation is CMR: Polyolefin (PO)
  • Color Code
  1. Pair: Blue-White 1.03 ± 0.02 mm
  2. Pair: Orange-White  0.97± 0.02 mm
  3. Pair: Green-White 1.01 ± 0.02 mm
  4. Pair: Brown-White  0.97 ± 0.02 mm
  • Rip cord: Polyester multi-yarn
  • Jacket is CMR: Flame retardant PVC
  • Jacket color to choose from: Gray, Blue, White, Yellow, Red, Black and Green


Application

  1. Structure cabling for horizontal and building backbone cable.
  2. Transmission of digital and analogue for data, video and audio applications.
  3. CDDI / ATM / Token Ring.
  4. IEEE 802.3ab 1000BASE-T, 1000BASE-TX and legacy speeds.
  5. CDDI / ATM / Token Ring.
  6. IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)

Packaging: EZ pull box @36/36kft

Dimensions: 15 x 15 x 15



NEW IN THE BOX
