ABA Elite, Category 6E 600MHz U/UTP Solid Cable CMP, 1000ft, Part # TUP2404N70XX-S
Cables

ABA Elite, Category 6E 600MHz U/UTP Solid Cable CMP, 1000ft, Part # TUP2404N70XX-S

Availability: In Stock
$315.00
Wishlist Compare

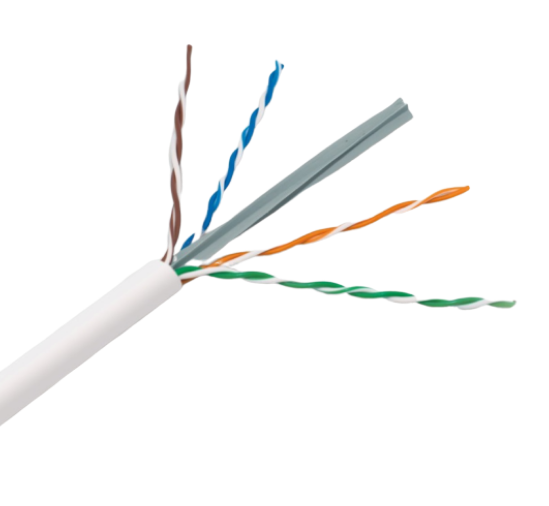

The high quality ABA Elite TUP2404N70xx-S Category 6E 600MHz U/UTP Solid Cable is made from , 23AWG solid bare copper with cross filler and rip cord that have high performance transmission.

Cable Construction:

Conductors: 23 AWG solid bare annealed copper
Insulation: CMP: FEP



Color Code

  • Pair 1: Blue-White 0.95 ± 0.02 mm
  • Pair 2: Orange-White 0.92 ± 0.02 mm
  • Pair 3: Green-White 0.94 ± 0.02 mm
  • Pair 4: Brown-White 0.92 ± 0.02 mm

Filler: Polyolefin (PO)

Rip cord: Polyester multi-yarn

Jacket

  • CMP: LSFR-PVC
  • Colors available to choose from: Gray, Blue, White, Yellow, Red, Black, Green



Application:

  • Structure cabling for horizontal and building backbone cable.

  • Transmission of digital and analogue for data, video, and audio applications.

  • IEEE 802.3ab 1000BASE-T, 1000BASE-TX and legacy speeds.

  • CDDI / ATM / Token Ring

  • IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)



STANDARD COMPLIANCES

  • ANSI/TIA-568.2-D (2018)
  • ISO/IEC 11801-1  IEC 61156-5 (Edition 2.1)  NFPA 262 (CMP)
  • UL 444  CSA 22.2 NO.214
  • EU Directive 2011/65/EU & 2015/863/EU
  • EU Directive 2006/95/EC (LVD)

Packaging: RELEX II @30/30 kft

Dimensions: 15 x 15 x 15



NEW IN THE BOX
