ABA Elite, Category 7A 1000MHz S/FTP Solid Cable CMR, 1000ft, Part# TFP2204TXX
Cables

ABA Elite, Category 7A 1000MHz S/FTP Solid Cable CMR, 1000ft, Part# TFP2204TXX

Availability: In Stock
$1,152.00
Wishlist Compare

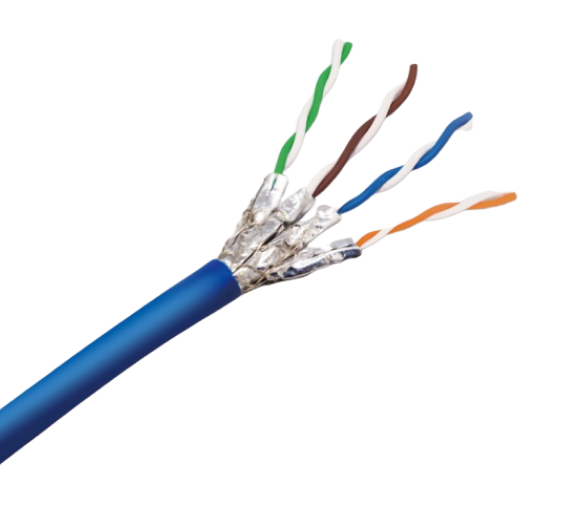

The quality ABA Elite TFP2204Txx Category 7A 1000MHz S/FTP Solid Cable CMR is made from 22 AWG solid bare copper for each pair twist with metal foil screen with braid wire.

Cable Construction:

Conductors: 23 AWG solid bare annealed copper
Insulation: CMR: Polyolefin (PO)

Color Code

  • Pair 1: Blue-White  1.45 ± 0.02 mm
  • Pair 2: Orange-White 1.45 ± 0.02 mm
  • Pair 3: Green-White 1.45 ± 0.02 mm
  • Pair 4: Brown-White 1.45 ± 0.02 mm

Pair shield: Polyester-backed aluminum
Braid: Tinned copper ˃ 40 % coverage

Jacket:

  • CMR: Flame retardant PVC
  • Color Available: Gray, Blue and White.


Application:

  • Structure cabling for horizontal and building backbone cable.
  • Transmission of digital and analogue for data, video and audio applications.
  • Metal shielded and braided providing good protection from EMI noise.
  • Beyond IEEE 802.3an 10GBASE-T and legacy speeds.
  • CDDI / ATM / Token Ring  IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)



STANDARD COMPLIANCES

  • ISO/IEC 11801-1
  • IEC 61156-5 (Edition 2.1)
  • UL 1666 (CMR)
  • UL 444  CSA 22.2 NO.214
  • EU Directive 2011/65/EU & 2015/863/EU
  • EU Directive 2006/95/EC (LVD)

Packaging: plywood reel  @18/18 kft

Dimensions: 15 x 15 x 15



NEW IN THE BOX
