ABA Elite, Category 8 1000MHz S/FTP Solid Cable CMP, 1000ft, Part# TFP2204ZXX
Cables

ABA Elite, Category 8 1000MHz S/FTP Solid Cable CMP, 1000ft, Part# TFP2204ZXX

Availability: In Stock
$1,560.00
Wishlist Compare

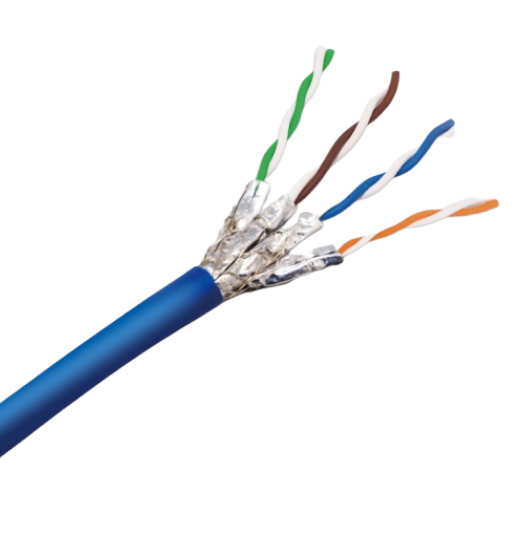

The quality ABA Elite TFP2204Zxx Category 8 1000MHz S/FTP Solid Cable CMP is made from 22AWG solid bare copper CAT 8 that Each pair is in a twist metal foil screen with braid wire for high performance transmission.

Material and Cable Construction:

Conductor: 22AWG solid bare copper

Insulation: Foam FEP

Color code & diameter:

  • Blue & white 1.50 ± 0.02 mm
  • Orange & white 1.50 ± 0.02 mm
  • Green & white 1.50 ± 0.02 mm
  • Brown & white 1.50 ± 0.02 mm

Pair shield: Al Mylar tape

Jacket:

  • Low smoke flame retardant polyvinyl chloride (LSFRPVC)
  • Colors Available: Blue


Application:

  • Transmission of digital and analogue for data, video, voice and audio applications.
  • Metal shielded and braided providing good protection from EMI noise
  • Beyond IEEE Std 802.3bq-2016 25G/40GBASE-T and legacy speeds.
  • Top-of-Rack (ToR), End-of-Row (EoR), Middle-of Row (MoR) and for data center cabling.
  • CDDI / ATM / Token Ring
  • IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)


Applicable Standard:

Packaging: plywood reel  @18/18 kft

Dimensions: 15 x 15 x 15



NEW IN THE BOX
