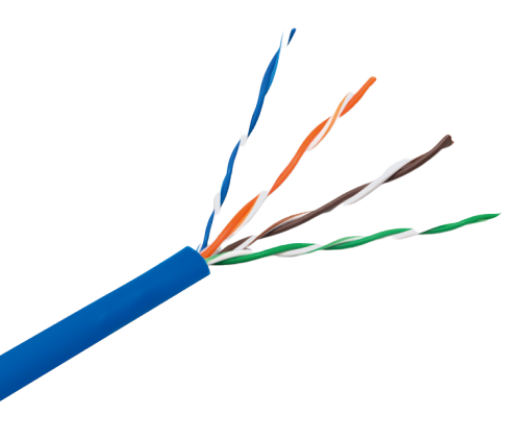

ABA Elite, Category 6 400MHz U/UTP Stranded Cable, 1000ft, Part# TAM2604N70GY
Cables

ABA Elite, Category 6 400MHz U/UTP Stranded Cable, 1000ft, Part# TAM2604N70GY

Availability: In Stock
$208.50
Wishlist Compare

The quality ABA Elite TAM2604N70GY Category 6 400MHz U/UTP Stranded Cable is the cabling solution for unique installments made from 26AWG stranded bare copper and overall metal foil screen with drain wire for Structure cabling for patch cable and high transmission capacity of digital and analogue for data, video and audio applications.

Cable Construction:

Conductor: Material Polyolefin (PO)

Color code & diameter:

  • Blue & white/blue Stripe 0.86 ± 0.02 mm
  • Orange & white/orange stripe 0.86 ± 0.02 mm
  • Green & white/green stripe 0.86 ± 0.02 mm
  • Brown & white/brown stripe 0.86 ± 0.02 mm

Shield: Material Mylar tape

Drain wire: Material 26AWG 7/35 stranded tinned copper

Jacket

  • polyvinyl chloride (PVC)
  • Jacket colors available to choose from: Gray, Blue, White, Yellow, Red, Black, Orange and Green



Applications:

  1. Structure cabling for patch cable..

  2. Transmission of digital and analogue for data, video and audio applications.

  3. Overall metal shielded providing good protection from EMI noise.

  4. IEEE 802.3u 100BASE-T and legacy speeds.

  5. CDDI / ATM / Token Ring

  6. IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)


Applicable Standard

  1. Electrical Transmission
    1. ANSI/TIA-568-C.2 (2009)
    2. ISO/IEC 11801 (Edition 2.2)
    3. IEC 61156-5 (Edition 2.0)
  2. Flame Test
    1. UL 1685 (CM)
  3. Material and constructionEU Directive 2011/65/EU (RoHS2)
    1. UL 444
    2. CSA 22.2 NO.214
  4. EU Directive 2006/95/EC (LVD)
  5. CE Compliance date 2010.01.01

Packaging: plywood reel  @36/36 kft

Dimensions: 15 x 15 x 15



NEW IN THE BOX
