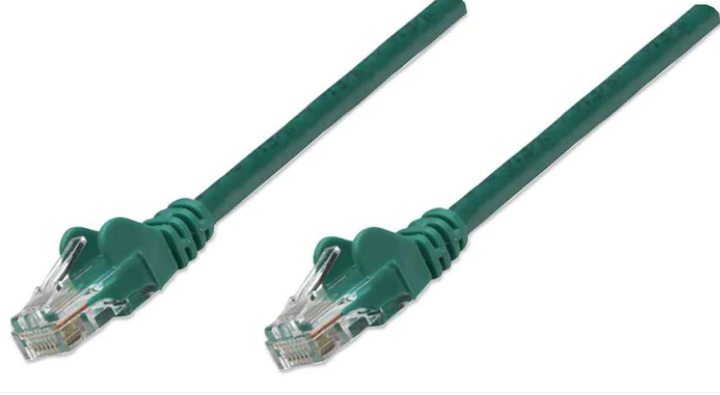

Intellinet IEC-C6-GR-14, Network Cable, Cat6, UTP, RJ45 Male / RJ45 Male, 5.0 m (14 ft.), Green, Part# 343718
Cables

Intellinet IEC-C6-GR-14, Network Cable, Cat6, UTP, RJ45 Male / RJ45 Male, 5.0 m (14 ft.), Green, Part# 343718

Availability: In Stock
$4.43
Wishlist Compare

The efficient Intellinet 343718 IEC-C6-GR-14, Network Cable, Cat6, UTP, RJ45 Male / RJ45 Male, 5.0 m (14 ft.), in color Green.

Features:

  • Gold-plated contacts for the best connection
  • PVC cable jacket for flexibility and durability
  • Snag-free boots protect RJ45 connectors
  • Ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
  • Heavy-duty strain relief
  • Compatible and color-coded with T568A and T568B
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Fully backward compatible with previous cable categories, including Category 5e and 5



Specifications:

Standards and Certifications

  • ISO/IEC 11801
  • EN 50288
  • RoHS
  • REACH
  • 1000Base-T/10GBase-T
  • ANSI/TIA-568.2-D

General

  • Supported transfer speeds: up to 10 Gbps
  • Max. operating frequency: 250 MHz
  • Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
  • Mating cycles: ≥750

Connectors

  • Two RJ45 male
  • 6 micro-inch gold-plated contacts

Cable

  • 24 AWG
  • Shielding: U/UTP
  • PVC CM jacket
  • Wire: CCA
  • Jacket OD: 5.5 mm (0.217 in.)
  • Conductor type: stranded
  • Cable type: round
  • Length: 5 m (14 ft.)
  • Net weight: 148 g (0.33 lbs)
  • Gross weight: 155 g (0.34 lbs.)

Environmental

  • Operating temperature: 0 - 45°C (32 - 113°F)
  • Storage temperature: -10 - 70°C (14 - 158°F)
  • Operating humidity (non-condensing): 10 - 90% RH

Package Contents

  • Cat6 U/UTP Network Patch Cable

Dimensions 196.85 inches:


"A minimum order amount of $50 is required in order to Maintain Wholesale Price"

NEW IN THE BOX
