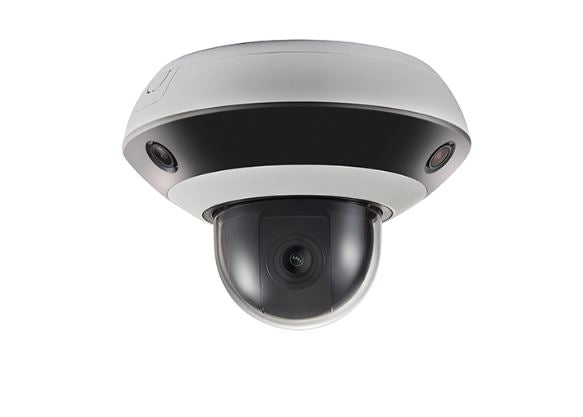

Hikvision 8 MP H.265 PanoVu Mini Series Panoramic + PTZ Indoor Camera, Part# DS-2PT3326IZ-DE3
Hikvision’s PanoVu DS-2PT3326IZ-DE3 PanoVu Mini Series Network PTZ Camera uses integrated graphics capturing 360° images with the three panoramic cameras.
Specifications
Panoramic Camera
Image Sensor : 3 x 1/2.8" progressive scan CMOS
Minimum Illumination :
Color: 0.05 lux @ (ƒ/2.0, AGC on)
B/W: 0.01 lux @ (ƒ/2.0, AGC on)
0 lux with IR
Shutter Speed : 1/30 s to 1/30,000 s
Day/Night : IR cut filter
Gain : Auto/manual
WDR : Digital WDR
Smart Image Enhancement : HLC/BLC/3D DNR/Regional Exposure
White Balance : Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Privacy Mask : 4 × 3 programmable privacy masks
Focal Length : 2 mm
Aperture Range : ƒ/2.0
FOV :
Horizontal field of view: 128.5° × 3
Vertical field of view: 75.7°
Diagonal field of view: 144°
PTZ Camera
Image Sensor : 1/2.8" progressive scan CMOS
Minimum Illumination :
Color: 0.05 lux @ (ƒ/2.0, AGC on)
B/W: 0.01 lux @ (ƒ/2.0, AGC on)
0 lux with IR
Shutter Speed : 1/1 s to 1/30,000 s
Day/Night : IR cut filter
Gain : Auto/manual
WDR : Digital WDR
Smart Image Enhancement : HLC/BLC/3D DNR/Regional Exposure/Regional Focus
White Balance : Auto/Manual/ATW (auto-tracking white balance)/indoor/outdoor/fluorescent lamp/sodium Lamp
Privacy Mask : 8 programmable privacy masks
Digital Zoom : 8×
Focus Mode : Semi-automatic/manual
Focal Length : 2.8 mm to 12 mm, 4× optical zoom
Zoom Speed : Approximately 5.4 s (optical, wide-tele)
FOV :
Horizontal field of view: 120° to 56.6° (wide-tele)
Vertical field of view: 61.8° to 31.7° (wide-tele)
Diagonal field of view: 149° to 65° (wide-tele)
Minimum Working Distance : 10 mm to 1500 mm (wide-tele)
Aperture Range : ƒ/2.0 to ƒ/2.4
Pan and Tilt Range : Pan: 0° to 350°; tilt: 0° to 90°
Pan and Tilt Speed :
Pan speed: 0.1°/s to 30°/s (configurable), preset speed: 30°/s
Tilt speed: 0.1°/s to 30°/s (configurable), preset speed: 30°/s
Proportional Zoom : Supported
Preset Number : 300
Power-Off Memory : Supported
PTZ Status Display : Supported
Preset Freezing : Supported
Scheduled Task : Preset/Dome Reboot/Dome Adjust
Dual-VCA : Supported
Smart Event Detection : Audio exception detection, intrusion detection, line crossing detection
System
IR : Up to 33 ft (10 m) IR (radius)
SVC : Supported
ROI : Main stream supports eight fixed areas
Video Compression :
Main stream: H.265/H.264/MJPEG
H.264: Main Profile/High Profile
Video Bitrate : 32 Kbps to 8192 Kbps
Audio Compression : G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2
Audio Bitrate :
G.711alaw/G.711ulaw: 64 Kbps
G.722.1/G.726: 16 Kbps
MP212: 32 Kbps/64 Kbps/128 Kbps
Resolution : Main stream: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Basic Event Detection : Motion detection, video tampering detection, exception
NEW IN THE BOX
