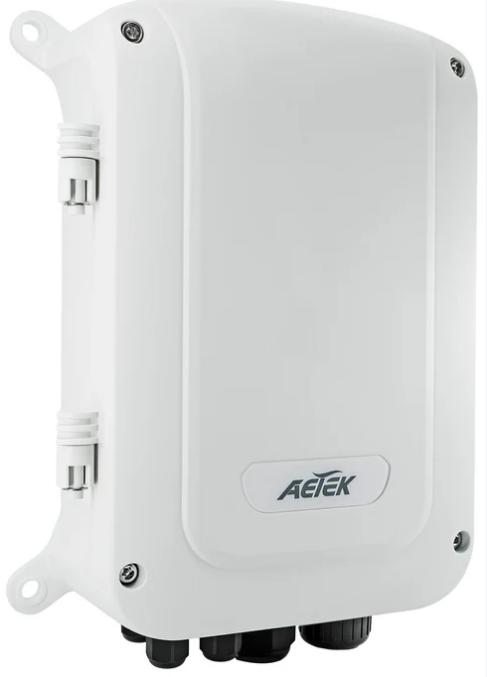

AETEK H40-082-30-250-V3, Outdoor IP67/IK10 8-Port 30W PoE + 2-Port SFP Gigabit PoE Switch, Part# 640712
The quality AETEK 640712 H40-082-30-250-V3, Outdoor IP67/IK10 8-Port 30W PoE + 2-Port SFP Gigabit PoE Switch with 8 x IEEE 802.3at PoE+ ports, 2 x SFP uplink ports, 6KV PoE surge protection, 250 W PoE Power Budget, and IP67-Rated Aluminum Housing.
Features:
- IP67/IK10-rated heavy-duty Aluminum enclosure
- 8 x IEEE 802.3at compliant PoE+ ports with up to 30W each
- Two SFP 1.25G slots allow for daisy-chaining for long-range IP surveillance
Specifications:
Standards and Certifications
- 802.3af / 802.3at / 802.3bt
- CE, FCC, VCCI, C-Tick Class A
- EN62368-1, EN61000-4-5
General
- Number of Network Ports: 8
- Number of PoE+ Network Ports: 8
- Number of SFP Ports: 2 x 1.25G
- Connectors: PF ¾, M25 cable gland with 5x5mm holes x1pc, M16 cable gland 1x6.5mm hole x4pc
- Data transfer rate: 10/100/1000 Mbps
- Mac table: 8K
- Jumbo frames: 9,216 Bytes
- Switching capacity: 20 Gbps
- Forwarding capacity: 11.904Mpps
- Weather rating: IP67
- Vandal proof: IK10
- MTBF (Hours): 588,000
- Operating Altitude: 2,000 m (6,562 ft)
Power
- Input Voltage: 100VAC ~ 240VAC, 280VAC for up to 4hr, 300VAC for up to 1min.
- Output Voltage Range / per PoE Port: 54 VDC, PoE IEEE 802.3af (Max. 15.4W) output, PoE+ IEEE802.3at (Max. 30W) output
- Backup Power Input Voltage: 48VDC ~ 56VDC
- PSE Power Pin Assignment: 12(-),36(+)
- System Power Consumption (without PoE): 5W
- PoE Output Power Budget: 250W
- Surge Protection per PoE Port: 6KV
- Surge Protection for AC power: 40KV
Mechanical & Environmental:
- Operating Temperature: -40°C~ 65°C (-40°F~ 149°F)
- Storage Temperature: -40°C~ 85°C (-40°F~ 185°F)
- Operating Humidity: 5% ~ 95% non-condensing
Dimensions (L x W x H): 12.42 x 9.68 x 4.65 inches
A minimum order amount of $50 is required in order to Maintain Wholesale Price
NEW IN THE BOX
