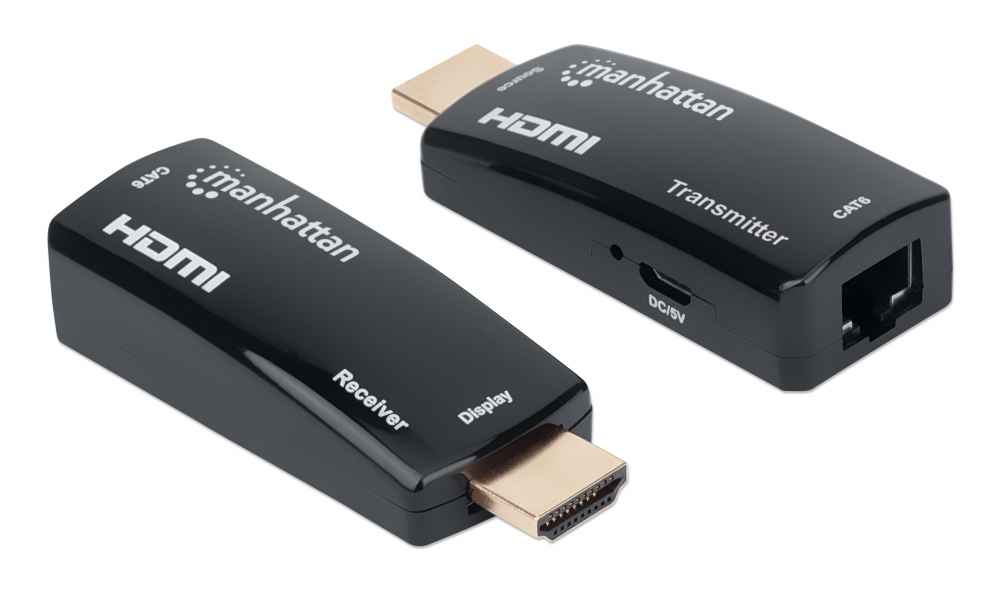

Manhattan 207539 1080p Compact HDMI over Ethernet Extender Kit, Part# 207539
Network Cables

Manhattan 207539 1080p Compact HDMI over Ethernet Extender Kit, Part# 207539

Availability: In Stock
$42.60
Wishlist Compare

The compact Manhattan 207539 1080p Compact HDMI over Ethernet Extender Kit extends an HDMI Signal up to 60 m (196 ft.) at 1080p@60Hz with a Single Cat6 Ethernet Cable, Transmitter and Receiver, Power over Cable, Ultra Slim Design, in color Black.

Features:

  • Extends an HDMI signal up to 60 m (196 ft.) from an HDMI source to a display using one Cat6 Ethernet cable
  • Delivers uncompressed 1080p@60Hz resolution
  • Slim and compact design for installations in confined spaces or virtually anywhere



Specifications:

Standards and Certifications

  • HDCP 1.3
  • DVI 1.0
  • CE
  • FCC
  • RoHS

 General

  • Cat6 cable: 1080p at 60 m (196 ft.)
  • Power: 5 VDC
  • Reset button

Connections

  • One HDMI male (transmitter/receiver)
  • One RJ45 female (transmitter/receiver)
  • One 5 VDC power female, Micro-USB (transmitter/receiver)

Electrical

  • One 5 VDC power female, Micro-USB (transmitter/receiver)
  • Power consumption: 5 W (max.)
  • Supports Power over Cable (PoC): one power adapter powers both the Transmitter and Receiver units

Signal Input/Output

  • Input video signal: 0.5 – 1.0 V p-p
  • Input DDC signal: 5 V p-p (TTL)
  • Output video: HDCP 1.3, DVI 1.0

Video Resolutions

  • Standard Definition, High Definition, Full High Definition: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p

Physical

  • Dimensions: 62 x 27 x 17 mm (2.44 x 1.06 x 0.67 in.)
  • Weight: 34 g (0.08 lbs.)
  • Housing: ABS plastic

Operating Environment

  • Operation temperature: 0 – 50°C (32 – 122°F)
  • Storage temperature: -10 – 60°C (14 – 140°F)
  • Humidity (noncondensing): 5 – 90%

Package Contents

  • 1080p Compact HDMI over Ethernet Extender Kit
  • Two 0.8 m (2.6 ft.) Micro USB to USB-A power cables
  • Quick Instruction Guide

Dimensions: 2.44 (L) x 1.06 (W) x 0.67 (H) [inches]



A minimum order amount of $50 is required in order to Maintain Wholesale Price
