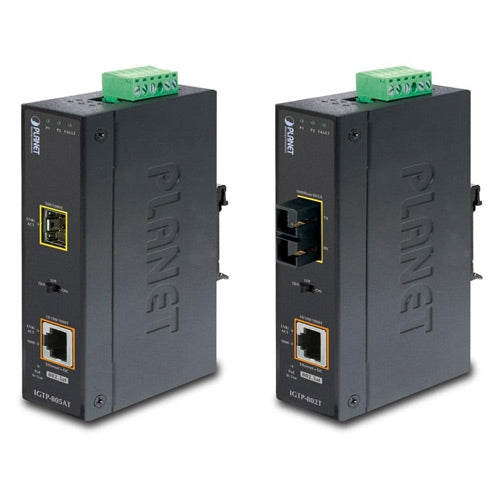

PLANET IGTP-805AT IP30 Industrial 10/100/1000Base-T to Gigabit SFP Converter with 802.3at POE+ (-40 to 75C), Stock# IGTP-805AT
Planet

PLANET IGTP-805AT IP30 Industrial 10/100/1000Base-T to Gigabit SFP Converter with 802.3at POE+ (-40 to 75C), Stock# IGTP-805AT

Availability: In Stock
$325.31
Wishlist Compare

Product features


PLANET IGTP-805AT This is an IP30 Industrial Gigabit SFP Converter with 802.3at POE+ that converts from 1000Base-X to 10/100/1000Base-T with 802.3at High Power over Ethernet (PoE) injector delivered in an IP30 rugged strong case and operates on a temperature ranging from -40 to 75C. This supports 30 watts of power output and data transmission delivered to remote powered devices over a single Ethernet cable. This converter is also backward compatible with 802.3af PoE standards to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration.

Industrial Case / Installation
IP30 aluminum metal case protection
DIN rail and wall mount design
24 and 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
Supports EFT protection 6000V DC for power line
Supports 6000V DC Ethernet ESD protection
-40 to 75 degrees C operating temperature

Physical Port
1-port 10/100/1000Mbps RJ-45 interface, auto-negotiation and auto MDI / MDI-X
 1-port Data + Power output, 802.3af / 802.3at PoE standard compatible
 10/100/1000Base-T: 1-Port Cat. 5/5e/6 UTP cable, up to 100 meters
1-port Gigabit Fiber Interface
 IGTP-802T: SC Fiber Interface
 IGTP-802TS: SC Fiber Interface
 IGTP-805AT: LC Fiber Interface (Varying on SFP Module, 100/1000 dual mode support)

IEEE 802.3af / 802.3at PoE
Complies with IEEE 802.3af and IEEE 802.3at standard, End-Span PSE
24V / 48V DC Power Input for PoE
Provides DC 52V power over RJ-45 Ethernet cable to devices with Ethernet port
Supports PoE Power up to 30 watts for PoE port
Auto-detects PoE IEEE 802.3at / IEEE 802.3af equipment, protecting the devices from being damaged by incorrect installation
Remote power feeding up to 100m
IEEE 802.3at / IEEE 802.3af splitter devices compatibl

*NEW IN THE BOX
*One Year Warranty
