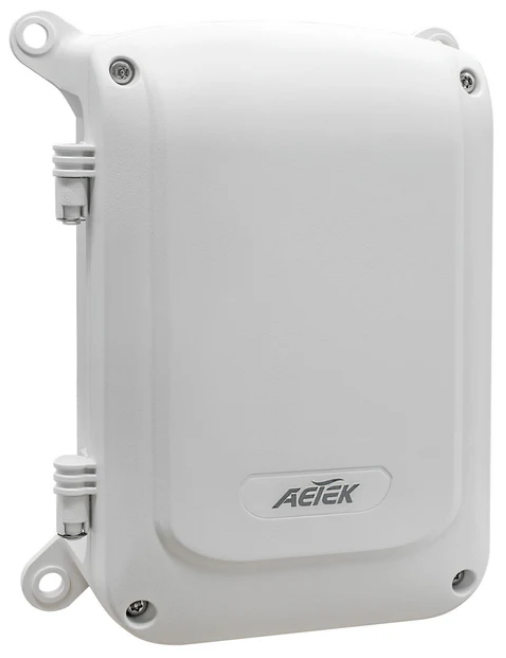

AETEK H42-042-91-150, Outdoor IP67/IK10 bt PoE Switch with Adjustable 24V/56VDC Passive PoE and 12V/24VDC Output, Part# 643553
The quality AETEK 643553 H42-042-91-150, Outdoor IP67/IK10 bt PoE Switch with Adjustable 24V/56VDC Passive PoE and 12V/24VDC Output is a 2 x IEEE 802.3bt PoE ports, 2 x 24V/56VDC Passive PoE ports, 2 x SFP uplink ports has 6KV PoE surge protection, 150 W PoE Power Budget, and IP67-Rated Aluminum Housing.
Features:
- IP67/IK10 rated heavy-duty Aluminum enclosure
- Two IEEE 802.3bt-compliant PoE ports with up to 90W each
- Two 24V/56VDC Passive PoE ports
- Two SFP 1.25G slots allow for daisy-chaining for long-range IP surveillance
Specifications:
Standards and Certifications
- 802.3af / 802.3at / 802.3bt
- CE, FCC, VCCI, C-Tick Class A
- EN62368-1, EN61000-4-5
General
- Number of Network Ports: 6
- Number of PoE++ Network Ports: 2
- Number of Passive PoE Network Ports: 2
- Number of SFP Ports: 2 x 1.25G
- Data transfer rate: 10/100/1000 Mbps
- Mac table: 4K
- Jumbo frames: 9,216 Bytes
- Switching capacity: 12 Gbps
- Forwarding capacity: 11.904Mpps
- Surge protection per PoE Port: 6KV
- Weather rating: IP67
- Vandal proof: IK10
- MTBF (Hours): 84,877
- Operating Altitude: 2,000 m (6,562 ft)
Power
- Input Voltage: 100~240VAC and 48-56VDC Backup Input Power
- Output Power (Port 1-2): PoE IEEE 802.3af (Max. 15.4W), PoE+ IEEE 802.3at (Max. 30W), PoE++ IEEE 802.3bt (Max. 90W)
- Output Power (Port 3-4): 24W @ 2-pair 24VDC, 48W @ 4-pair 24VDC, 56W @ 2-pair 56VDC, 90W @ 4-pair 56VDC, 15W @ 2-pair IEEE 802.3af PoE
- Output PoE Power Pin Assignment (Port 1-2): 12(-), 36(+), 45(+), 78(-)
- Output PoE Power Pin Assignment (Port 3-4): 2-pair PoE: 45(+), 78(-), 4-pair PoE: 12(+), 36(-), 45(+), 78(-)
- Output Power per DC Port: 1 x 12VDC@2.5A, 1 x 24VDC@1.25A
- System Power Consumption (without PoE): 5W
- PoE Output Power Budget: 150W
- Surge Protection per PoE Port: 6KV
- Surge Protection for AC power: 10KV
Mechanical & Environmental:
- Operating Temperature: -40°C~ 65°C (-40°F~ 149°F)
- Storage Temperature: -40°C~ 85°C (-40°F~ 185°F)
- Operating Humidity: 5% ~ 95% non-condensing
Dimensions (L x W x H): 10 x 7.86 x 3.74 inches
"A minimum order amount of $50 is required in order to Maintain Wholesale Price
NEW IN THE BOX
