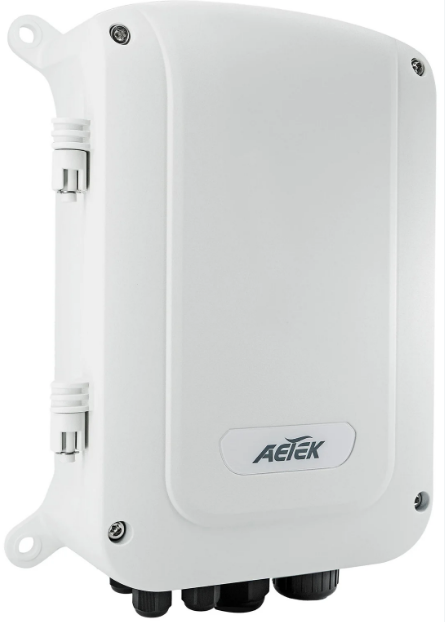

AETEK H60-044-30-150-V2, Outdoor IP67/IK10 L2 PRO 4-Port Gigabit PoE+ Switch, Part# 642167
The efficient AETEK 642167 H60-044-30-150-V2, Outdoor IP67/IK10 L2 PRO 4-Port Gigabit PoE+ Switch with 8 x IEEE 802.3at PoE+ ports, 2 x SFP uplink ports, 6KV PoE surge protection, 250 W PoE Power Budget, IP67-Rated Aluminum Housing.
Features:
- Network Topology System: Automatic discovery for ONVIF cameras, topology view, E-MAP floor view, Google map, PoE management, cable diagnostics
- IP67/IK10-rated heavy-duty Aluminum enclosure
- 4 x IEEE 802.3at compliant PoE+ ports with up to 30W each
- Two SFP 1.25G slots allow for daisy-chaining for long-range IP surveillance
Specifications:
Standards and Certifications
Certifications
- EMC: CE, FCC, VCCI, C-Tick Class A
- Safety: EN62368-1
- Surge: EN61000-4-5
Networking
- Total Gigabit Ethernet Ports: 8
- 4 × 30W at PoE Gigabit Ethernet 802.3af/at Ports
- 2 × Gigabit Ethernet SFP Ports (100M/1G)
- 2 × Gigabit Ethernet RJ45 Ports
- Forwarding Capacity: 11.904 Mpps
- MAC Table: 8K
- Jumbo Frames: 9,216 Bytes
- Switching Capacity: 16 Gbps
Power
- Input Voltage: 100–240VAC and 48–56VDC Backup Input Power
-
Output Power per PoE Port:
- PoE IEEE 802.3af (Max. 15.4W)
- PoE+ IEEE 802.3at (Max. 30W)
- Output PoE Power Pin Assignment: 12(+), 36(-)
- System Power Consumption (without PoE): 10W
- PoE Output Power Budget: 120W
- Surge Protection per PoE Port: 6KV
- Surge Protection for AC Power: 40KV
Mechanical
- DI/DO: 1/1
- Console: RJ45
-
Reset Button Functions:
- 2–7 sec: Reset
- 7–12 sec: Restore to default
Environmental
- IP Rating: IP67
- IK Rating: IK10
- Operating Temperature: -40°C to 65°C (-40°F to 149°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Operating Humidity: 5% to 95% non-condensing
Dimensions (W × D × H): 9.68 × 12.42 × 4.65 inches
A minimum order amount of $50 is required in order to Maintain Wholesale Price
NEW IN THE BOX
