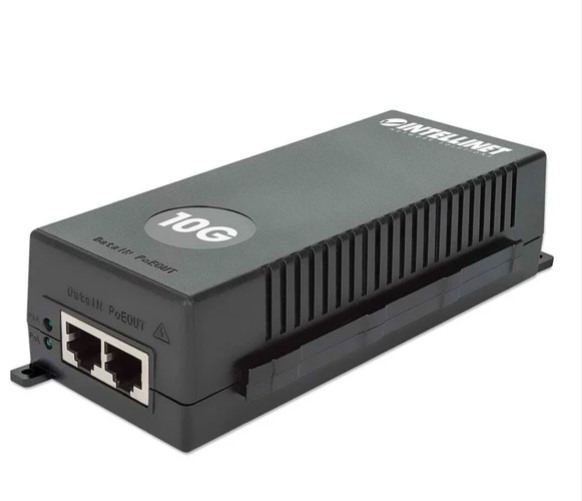

Intellinet 10G High-Power PoE+ Injector, Part# 561884
The efficient Intellinet 561884 10G High-Power PoE+ Injector is a One 30 W Port, IEEE 802.3at/af Compliant, 100 Mbps/1G/2.5G/5G/10G, Plastic Housing, Wall-mount Option.
Features:
- Power over Ethernet with output up to 30 watts
- Ultra-fast 10GBASE-T RJ45 Ethernet port, IEEE 802.3an compliant
- Supports 100 Mbps/1/2.5/5/10 Gbps data rates
Â
Specifications:
Standards
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
- IEEE 802.3af (Power over Ethernet 802.3at Type 1)
- IEEE 802.3at (Power over Ethernet 802.3at Type 2)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3bz (2.5GBASE-T Ethernet)
- IEEE 802.3an (10GBASE-T Ethernet)
General
-
Media support:
- 100Base-TX Cat5/5e/6/6a/8 UTP/STP RJ45
- 1000Base-T Cat5e/6/6a/8 UTP/STP RJ45
- 2.5G/5GBase-T Cat6/6a/8 UTP/STP RJ45
- 10GBase-T Cat6/6a/8 UTP/STP RJ45
-
Ports:
- One RJ45 10G data input port
- One RJ45 PoE power + 10G data output port
-
Certifications: CE, RoHS, FCC, UKCA, NDAA
PoE Pinout
- Pin 1: DC (-)
- Pin 2: DC (-)
- Pin 3: DC (+)
- Pin 6: DC (+)
LEDs
- Power
- PoE
Power
-
Internal power supply:
- Input: 100.0 - 240.0 VAC, 50 - 60 Hz
- Output: 52.0 VDC, 0.58 A
- PoE power budget: 30.0 watts (max.)
- Power consumption: 33.0 watts (max.)
Physical
- Plastic housing
- Net weight: 230 g (0.51 lbs.)
-
Gross weight: 430 g (0.95 lbs.)
-
Operating temperature: 0 - 40°C (32 - 104°F)
-
Storage temperature: -10 - 70°C (14 - 158°F)
-
Operating humidity: 5 - 95% RH, non-condensing
Package Contents
- 10G High-Power PoE+ Injector
- Power cable, 1.5 m (5 ft.)
- Instructions
Â
Dimensions (L x W x H): 5.75 x 2.44 x 1.57 inches
Â
A minimum order amount of $50 is required in order to Maintain Wholesale Price
Â
NEW IN THE BOX
