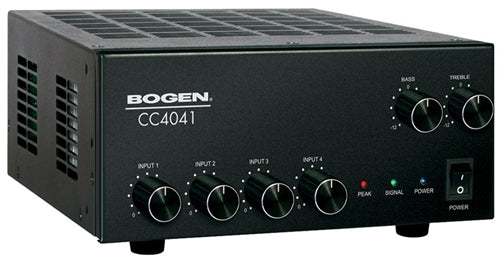

Bogen ~ 40 Watts Amplifier, 4 Inputs: 3 MIC/Line, 1 AUX ~ Stock# CC4041 ~ NEW
Speakers & Amplifiers

Bogen ~ 40 Watts Amplifier, 4 Inputs: 3 MIC/Line, 1 AUX ~ Stock# CC4041 ~ NEW

Availability: In Stock
$254.77
Wishlist Compare

The quality Bogen  CC4041 40 Watts Amplifier, 4 Inputs: 3 MIC/Line, 1 AUX IS A
compact mixer-amplifiers provide 40 watts of output power.

Features: Model CC4021 has two inputs: 1 balanced MIC/Line and 1 unbalanced AUX with individual volume controls. Model CC4041 has 4 inputs: 3 balanced MIC/Line and 1 unbalanced AUX with individual volume controls. Features include priority muting which can be disabled, individual phantom power on all MIC inputs, bass and treble controls, peak and signal indicators, and a REC Output.
They are compatible with 70V, 25V, 4-ohm, and 8-ohm speaker systems. The units measure two rack
spaces in height, but are only 8-1/4 wide allowing for two units to be placed side-by-side without
requiring additional rack spaces. An optional rack mount adapter is available for single and side-byside
configurations.

Features:

  • 40 Watts of output power
  • 4 Inputs
  • 3 balanced MIC/Line;
  • 1 unbalanced AUX
  • Individual phantom power for MIC inputs
  • Volume controls for each input
  • Input 1 can mute other inputs
  • Audio-activated muting
  • Defeatable muting
  • Bass and treble controls
  • Compatible with 70V, 25V, 4-ohm, and 8-ohm systems
  • REC Output
  • Peak indicator
  • Signal indicator
  • External 24V DC supply input
  • Optional rack mount adapter available for single and side-by-side configurations (sold separately)

    Technical Specifications:

    Output Power: 40W; 1 kHz @ rated distortion
    Frequency Response:
    Balanced LINE/MIC: 100 Hz to 20 kHz; 0/-3 dB
    Unbalanced Input: 80 Hz to 20 kHz; 0/-3 dB
    Distortion:
    Balanced LINE/MIC: 1% THD+N
    Unbalanced Input: 1% THD+N
    Output Regulation: 2 dBr or better no-load to full-load
    Output Impedance: 70V, 25V, 4 ohms, 8 ohms
    REC Output: 1.14V @ Full Rated Power (FRP)
    Maximum Sensitivity:
    Balanced MIC: 1.5 mVrms (200 ohms)
    Balanced LINE: 150 mVrms (200 ohms)
    Unbalanced RCA Input: 100 mVrms (10k ohms)
    Maximum Input Level:
    Balanced MIC: 100 mVrms
    Balanced LINE: 6 Vrms
    Unbalanced Input: 5 Vrms
    Signal to Noise AUX:
    Fundamental: -74 dBr minimum referenced to FRP
    Balanced MIC: -59 dBr minimum referenced to FRP
    Balanced LINE: -70 dBr minimum referenced to FRP
    Unbalanced Input: -70 dBr minimum referenced to FRP
    Bass & Treble:
    Bass: +/- 10 dBr @ 100 Hz referenced to mid-band
    Treble: +/- 10 dBr @ 10 kHz referenced to mid-band
    VOX Trigger & Muting:
    Input 1 Trigger Level: 25mV (approx.)
    VOX Release Delay: 4 (+/- 1) sec.
    Muting Level: 60 dBr
    CC4041 Rear Panel:
    Phantom Power: 12V DC min., 18V DC max.
    Max. Ambient Temp: 100 deg. F (non-condensing)
    Thermal Emissions: 141.5 BTU/hr. (full power)
    External Supply: 24V DC; 3A
    Dimensions: 8-1/4 W x 3-1/2 H x 10-3/8 D

    NEW IN THE BOX

    One Year Warranty
