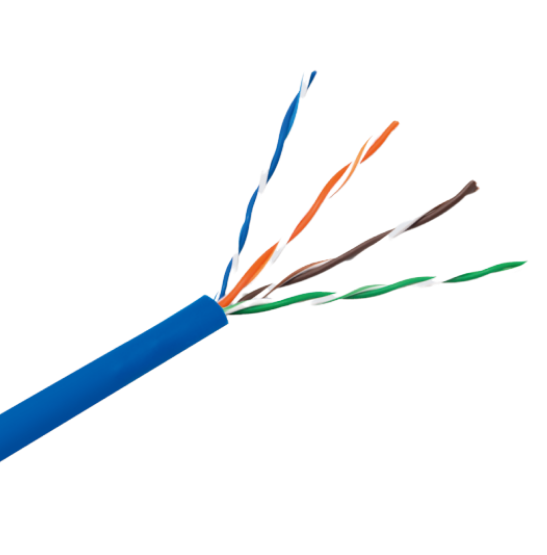

ABA Elite CAT5E 24AWG 350Mhz UTP CMR, 1000ft, Part# TUR2404N09xx
Cables

ABA Elite CAT5E 24AWG 350Mhz UTP CMR, 1000ft, Part# TUR2404N09xx

Availability: In Stock
$117.00
Wishlist Compare

The quality ABA Elite TUR2404N09xx CAT5E UTP CMR 24AWG 1000ft cable with 350Mhz fast frequency made from  24AWG solid bare copper with rip cord and Flame retardant PVC jacket for efficient transmission of digital and analogue for data, video and audio applications.

Cable Material and Structure:

Conductor: Material 24AWG solid bare copper

Insulation: Material Polyolefin (PO)
Color code & diameter:

  • Blue & white/blue Stripe 0.87 ± 0.02 mm
  • Orange & white/orange stripe 0.86 ± 0.02 mm
  • Green & white/green stripe 0.87 ± 0.02 mm
  • Brown & white/brown stripe 0.86 ± 0.02 mm

Ripcord Material: Polyester multi-yarn



Jacket:

  • Material: Flame retardant polyvinyl chloride (FRPVC)
  • Jacket available colors: Gray, Blue, White, Yellow, Red, Blue, Green and Violet

Application:

  • Structure cabling for horizontal and building backbone cable
  • Transmission of digital and analogue for data, video and audio applications.
  • IEEE 802.3u 100BASE-T and legacy speeds
  • CDDI / ATM / Token Ring
  • IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)

Packaging:  EZ pull box @ 45kft

Dimensions: 15 x 15 x 15



NEW IN THE BOX
