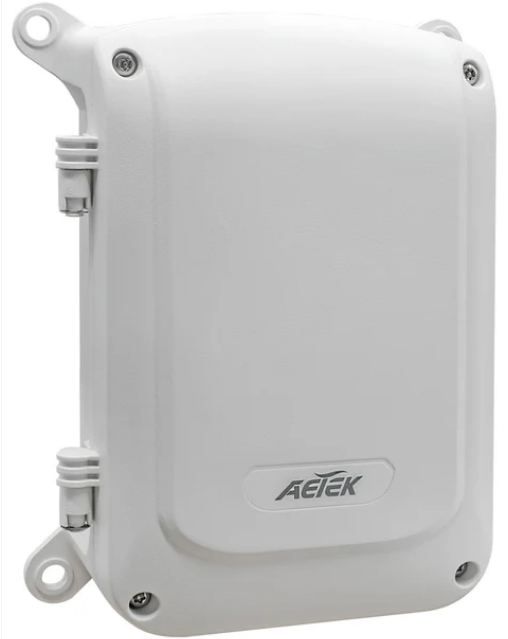

AETEK H40-022-91-DC, Outdoor IP67/IK10 Gigabit 90W PoE Switch w/ 12~56VDC Input, Part# 641627
Ethernet Switch

AETEK H40-022-91-DC, Outdoor IP67/IK10 Gigabit 90W PoE Switch w/ 12~56VDC Input, Part# 641627

Availability: In Stock
$455.00
Wishlist Compare

The quality AETEK 641627 H40-022-91-DC, Outdoor IP67/IK10 Gigabit 90W PoE Switch w/ 12~56VDC Input is a 6KV PoE surge protection, PoE Power Budget up to 180 W, IP67-Rated Aluminum Housing.

Features

  • IP67/IK10 rated heavy-duty Aluminum enclosure
  • Two IEEE 802.3bt-compliant PoE ports with up to 90W each
  • Two SFP 1.25G slots allow for daisy-chaining for long-range IP surveillance
  • Outputs: 2 PoE++ Ports



Specifications:

Standards and Certifications

  • 802.3af / 802.3at / 802.3bt
  • CE, FCC, VCCI, C-Tick Class A
  • EN61000-4-5


General

  • Number of Network Ports: 4
  • Number of PoE Network Ports: 2
  • Number of SFP Ports: 2 x 1.25G
  • 2 x M25
  • Data transfer rate: 10M/100M/1G
  • Mac table: 8K
  • Jumbo frames: 9,216 Bytes
  • Switching capacity: 8 Gbps
  • Forwarding capacity: 11.904Mpps
  • Surge protection per PoE Port: 6KV
  • Weather rating: IP67
  • Vandal proof: IK10
  • MTBF (Hours): 293,934
  • Operating Altitude: 2,000 m (6,562 ft)


Power

  • Input Voltage: 12VDC ~ 56VDC
  • Output Voltage Range / port 1~port 2: 54 VDC, PoE IEEE 802.3af (Max. 15.4W) output, PoE+ IEEE802.3at (Max. 30W) output, PoE++ IEEE 802.3bt (Max.60W/90W) output
  • PSE Power Pin Assignment: 12(-),36(+),45(+),78(-)
  • PoE Output Power Budget: 12VDC: 90W, 24-56VDC: 180W



Mechanical & Environmental:

  • Operating Temperature: -40°C~ 65°C (-40°F~ 149°F)
  • Storage Temperature: -40°C~ 85°C (-40°F~ 185°F)
  • Operating Humidity: 5% ~ 95% non-condensing



Dimensions (L x W x H): 10 x 7.86 x 3.7 inches



A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
