Aiphone IXW-MAA Multi-Purpose Adaptor for IX Series, Part# IXW-MAA
Power Adapter & Charger Accessories

Aiphone IXW-MAA Multi-Purpose Adaptor for IX Series, Part# IXW-MAA

Availability: In Stock
$344.87
Wishlist Compare

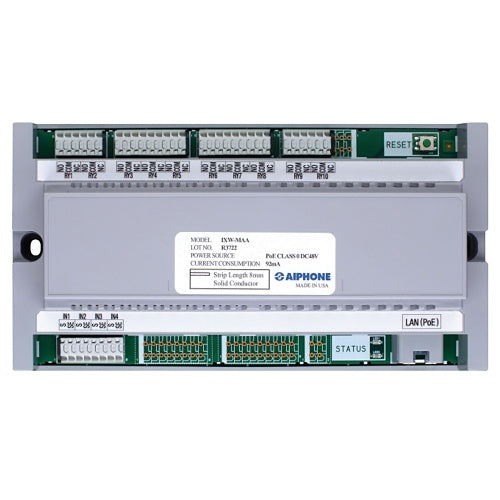

The quality Aiphone IXW-MAA Multi-Purpose Adaptor for IX Series is for the IX Series with four contact inputs and ten relay outputs. The inputs can be used to send a command to a specific station to perform a task. The relay outputs are assigned to a specific station and programmed to change state when relay output 1 or 2 on the associated station changes state. The IXW-MAA is surface-mounted directly to the wall through the mounting points on either side, or it can be mounted on a standard DIN rail. Wire terminations connect directly to the inputs and outputs on the station. The IXW-MAA is programmed as an IXW-MA in the IX Support Tool.

Features:

  • 802.3af PoE
  • Four contact inputs
  • Ten Form C relay outputs
  • 24V AC/DC 500mA Relay contact rating
  • Mountable to a 170mm DIN rail or directly to a wall

NEW IN THE BOX
