Bogen Nyquist 4-Channel Matrix Mixer Pre-Amp, Part# NQ-P0100
Speakers & Amplifiers

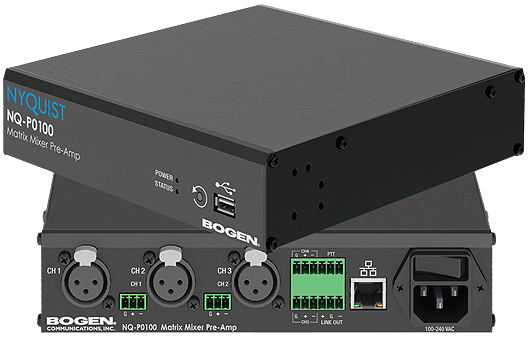

Bogen Nyquist 4-Channel Matrix Mixer Pre-Amp, Part# NQ-P0100

Availability: In Stock
$647.66
Wishlist Compare

The quality Bogen NQ-P0100 Nyquist 4-Channel Matrix Mixer Pre-Amp offers cost-effective performance for permanent installations and commercial sound and is designed to meet the rigorous requirements of today’s sophisticated sound systems. Developed with the commercial sound contractor in mind, the MMPA provides unparalleled flexibility and versatility without the need for add-on modules.

Features:

  • 4- MIC/Line Inputs
  • CH1-CH4 configurable balanced/unbalanced inputs via 3 XLR and 4 screw-terminal connections
  • Channel four (4) can be configured to support Push-to-Talk microphone applications
  • Mic inputs can be configured to supply Phantom Power when needed
  • CH1 can alternately be configured as an AES3 digital input
  • Web-based DSP control
  • 16-band Graphic Equalizer
  • Signal present and clip monitor
  • Adjustable High Pass, Low Pass, and Bandpass filters
  • Noise Gate
  • Compressor/Limiter
  • 7-band parametric equalizer
  • Mixed signals can be routed to Line Out or over the Nyquist network
  • Nyquist network-based audio input (paging, audio distribution)
  • Line-Level Monitor Output to drive input to “legacy” amplifiers
  • Safety: CAN/CSA C22.2 No. 62368-1:2014; UL62368-1:2014; EN62368-1:2014 • EMC: FCCPart15b ClassA; ICES-003, Issue 6:2016; EN 55032:2012; EN55035:2017



NEW IN THE BOX
