DataScout DS1, DS3, DDS and DS0-TIMS Kit (DS-SS-DDS-TIMS)

Availability: In Stock
$11,689.70
Wishlist Compare

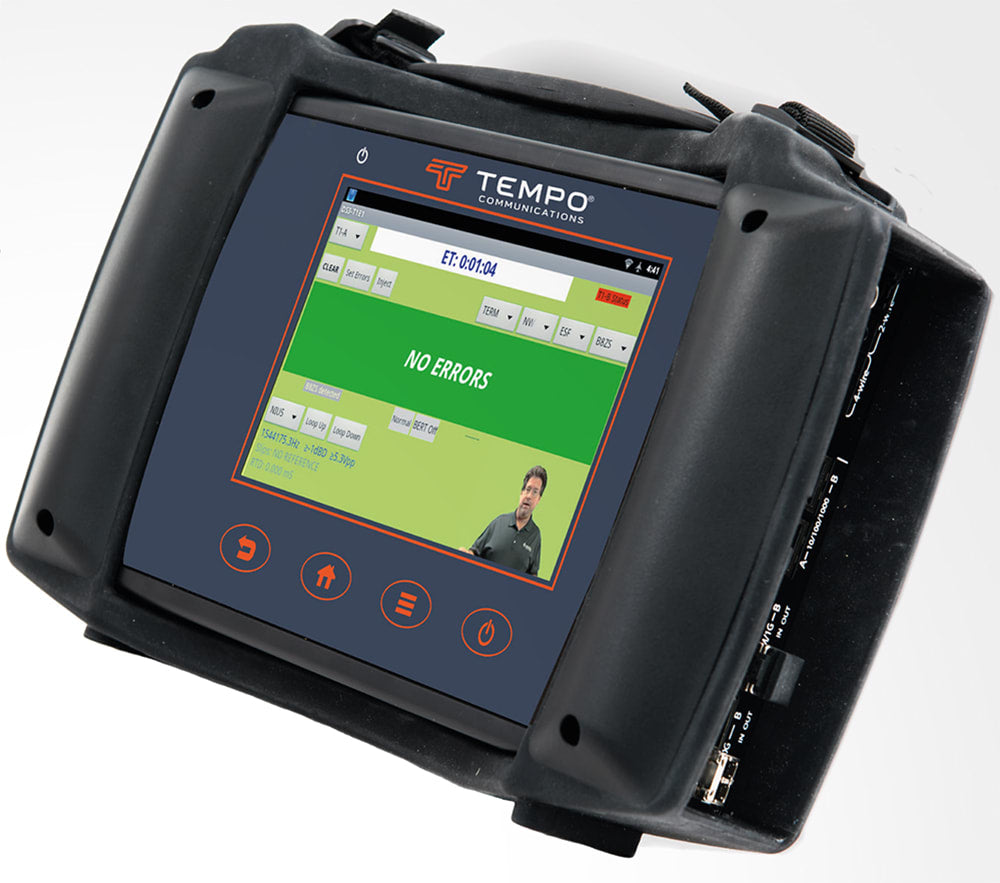

DS1, DS3, DDS and DS0-TIMS Kit, DataScout 10G analyzer kit for testing streams is a transport stream analyzer set based on the DataScout 10G platform. It is designed to test:

  • E1 / E3 streams
  • diagnostics of 2 and 4-wire analog voice and data transmission channels in the frequency range up to 2 MHz
  • DDS 56 / 54K (Data Distribution Service) testing to meet the needs of air traffic control applications, smart power grids, autonomous vehicles, robotics, logistics, power supply, medical equipment, space and defense, the Internet of Things, and other applications requiring real-time data exchange
  • ISDN-PRI analysis

Testing the DS1 and DS3 interfaces

  • Simultaneous testing of two E1 ports and a DS3 (E3) port
  • STS-1 signal detection
  • testing and emulation PRI-ISDN NT / TE
  • data logging G.821 PRI-ISDN
  • DS0 voice and data testing
  • DS3 pass-through test mode
  • BERT testing;
  • CSU / NIU emulation mode
  • DDS 56 / 64K DS0 BERT
  • Emulation VT100
  • Frame Relay Option

4-Wire DDS Testing

  • CSU / DSU emulation
  • 56K primary / secondary modes
  • 64K clean channel mode
  • display of received bytes in real time
  • control of the received signal level

PRI-ISDN Testing

  • TE and NT modes
  • Euro ISDN test option
  • Making / receiving voice calls
  • BERT Testing (Data / Voice)

Signaling - TIMS / DS0

  • signal generator with a frequency of up to 2 MHz;
  • 2-wire signaling;
  • signaling 2/4 wire path (voice and broadband);
  • frequency measurement;
  • measurement of noise levels;
  • sweep analysis
  • CO / PBX emulation
  • signaling +13 dBu / receiving -50 dBu
  • selective signaling of 4-wire path;
  • analysis of amplitude, phase and jitter;
  • measurement of gain jumps;
  • phase jump analysis

Convenient design of the analyzer:

  • Android OS 7 "
  • touch display, Russian-language menu and operating instructions
  • robust case with protective case and stand
  • Large capacity Li-Ion battery

Service functions to improve the comfort of working with the device:

  • Chrome web browser
  • Google maps, email, notes and contacts;
  • PDF viewer;
  • saving more than 1000 measurement results in digital and graphical form with reference to the date;
  • onboard training videos
