Fanvil High-end Video Intercom, Part# i18S
Fanvil

Fanvil High-end Video Intercom, Part# i18S

Availability: In Stock
$325.00
Wishlist Compare

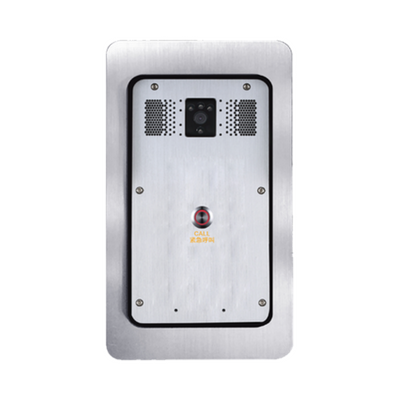

The i18S IP Video Intercom is designed for operation in indoor conditions. The robust
mechanical construction offers protective coverage rating against dust and water (IP65).


Highlights

  • Compatible with standard SIP(RFC3261) protocol and main IPPBX/IMS platform
  • Enclosure designed on International Protection (IP) markings to protect against intrusion -
  • accidental or intentional - waterproofed to IP65 and anti-collision up to IK10.
  • The system design adapts to operating under various environmental conditions and
  • temperatures (supports temperatures ranging from -40 to +70 Celsius.)
  • All-in-One(Access Control, Intercom and Broadcasting)
  • Built-in 3W speaker and AEC, support high quality hand-free communication.
  • Built-in HD camera and with backlight compensation function
  • System online maintenance and management


Physical Specifications

  • 1 DSS button (speed dial button)
  • 1 embedded short circuit input interface
  • 1 relay: MAX DC30V / 1A, AC125V / 0.5A
  • Active switching output: 12V / 650mA DC
  • Camera: 130W CMOS /IR-CUT
  • Microphone: -38dB
  • Speaker: 4Ω / 3W
  • WAN port: RJ-45, 10 / 100M adaptive
  • Power supply: 12V ± 15% / 1A DC or POE
  • PoE: 802.3af (Class 3 - 6.49 to 12.95W)
  • Network cable: CAT5 or better
