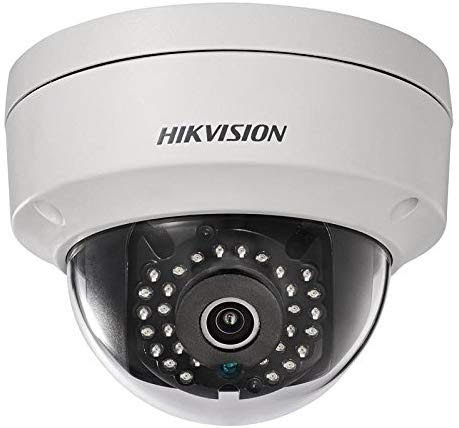

Hikvision 4 Megapixel Outdoor IR Network Vandal Dome Camera, 2.8mm Lens, DS-2CD2142FWD-I (S)-2.8 - - (24 per case)
security camera

Hikvision 4 Megapixel Outdoor IR Network Vandal Dome Camera, 2.8mm Lens, DS-2CD2142FWD-I (S)-2.8 - - (24 per case)

Availability: In Stock
$2,496.00
Wishlist Compare

DS-2CD2142FWD-I (S) 4MP WDR Fixed Dome Network Camera (24 per case



Features

  • 4 Megapixel High Resolution
  • Full HD1080p Video
  • Dual Video Streams
  • 2.8 mm, 4 mm, 6 mm Fixed Lens Options
  • 120 dB Wide Dynamic Range
  • 3D Digital Noise Reduction
  • Smart Features
  • PoE (802.3af)
  • IR Range 30 Meters (~100 Feet)
  • IP67 and IK10 Protection
  • Audio and Alarm I/O
  • Edge Storage, MicroSD Slot, 128 GB



SPECIFICATIONS



Camera


Image Sensor : 1/3" Progressive Scan CMOS

Min. Illumination : 0.05Lux @ (F1.2, AGC ON) in the color mode and 0.01Lux @ (F1.2, AGC ON) in B/W mode, 0 Lux with IR

Shutter Speed : 0.028Lux 1/3 s to 1/10,000 s @ (F2.0, AGC ON) ,0 Lux with IR
Lens : 2.7mm, 4mm, 6mm @ F2.0 angle of view: 106°(2.7mm), 83°(4mm), 55.4°(6mm)
Lens Mount : M12
Day &Night : IR cut filter with auto switch
DNR : 3D DNR
White Balance : Automatic/Manual
Wide Dynamic Range : 120dB

P&T rotation :
Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°



Compression Standard
Video Compression : H.264 / MJPEG/H.264+
H.264 Type : Main Profile
Video Bit Rate : 32 Kbps ~ 16 Mbps
Dual streams : Support


Max. Resolution : 2688×1520
Max Frame Rate :
60Hz: Main stream:20fps(2688×1520), 25fps (2048x1536), 30fps(1920×1080), 30fps (1280x960), 30fps(1280×720),Sub
stream: 30fps(352×240),30fps(704×480)

Image Setting : Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
and AGC
BLC : Support, zone configurable
ROI Codec : Support

Interface
Communication Interface : 1 RJ45 10M/100M Ethernet port, Base T
On-board storage : Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Alarm interface : 1x alarm I/O *only for –S models
Audio interface : 1x audio I/O *only for –S models
Reset : Yes


General
Operating Conditions : -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply : DC12V ± 25%, PoE (802.3af Class3)
Power Consumption : Max. 4W with the IR in ON
Max. 9W with pan and tilt
Warranty : The device has 36 months of the warranty
IR Range : Approx. 30 meters

Material :
DS-2CD2142FWD-I, DS-2CD2142FWD-IS : Base&Top Cover: Metal
DS-2CD2142FWD-IW, DS-2CD2142FWD-IWS: Base: Metal; Front Cover: Plastic

Ingress Protection : IP67
Impact Protection : IK10



NEW IN THE BOX
