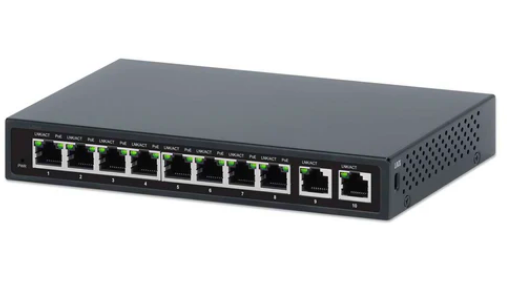

Intellinet 10-Port PoE+ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks, IPS-08G02-58W, Part# 562027
Hubs & Switches

Intellinet 10-Port PoE+ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks, IPS-08G02-58W, Part# 562027

Availability: In Stock
$109.19
Wishlist Compare

The high-performance Intellinet 562027 10-Port PoE+ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks, IPS-08G02-58W is an IEEE 802.3at/af (PoE+/PoE) Compliant, 58 W PoE Power Budget, Two 1G SFP Open Slots, VLAN and Flow Control Mode, Desktop or 19" Rackmount, Wall-mount Option.

Features:

  • Provides up to eight PoE network devices with power and data
  • Two RJ45 Gigabit uplink ports
  • PoE power budget of 58 watts
  • Power output up to 30 watts per port
  • Manual VLAN mode to isolate ports 1 to 8 from each other while allowing them to communicate with uplink ports 9 and 10
  • Manual Flow Control Off mode to disable the Gigabit Ethernet switch's flow-control function
  • 20 Gbps switch fabric / switching capacity
  • 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
  • Saves installation costs by delivering data and power over existing network cables
  • Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
  • Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection



Specifications:

Standards

  • IEEE 802.3 (10Base-T Ethernet)
  • IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
  • IEEE 802.3az (Energy Efficient Ethernet EEE)
  • IEEE 802.3af (Power over Ethernet 802.3at Type 1)
  • IEEE 802.3at (Power over Ethernet 802.3at Type 2)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • IEEE 802.3x (flow control for full duplex mode)

General

  • Media support:
    - 10Base-T Cat5e UTP/STP RJ45, 8 pin
    - 100Base-TX Cat5e UTP/STP RJ45, 8 pin
    - 1000Base-T Cat5e UTP/STP RJ45, 8 pin
  • MAC address table: 4k
  • Buffer memory: 1.5 Mbits
  • Forwarding rate: 14.88 Mpps
  • MTBF: >50k hours
  • Backplane speed / switch fabric: 20 Gbps
  • Switch architecture: store and forward
  • Certifications: FCC, CE, RoHS, UKCA, NDAA

Modes (selectable via slide switch on front panel)

  • Normal Mode
  • VLAN Mode (Port Isolation)
  • Flow Control Mode

LEDs

  • Power
  • Link/Activity
  • PoE

Pinout RJ45 output ports
- Pin 1: DC (+)
- Pin 2: DC (+)
- Pin 3: DC (-)
- Pin 6: DC (-)

Power

  • Included power adapter:
    - Input: 100.0 - 240.0 VAC, 50 - 60 Hz
    - Output: 53.5 V DC, 1.2 A, 64.2 W (max.)
    - Power consumption: 68.0 W (max.)

Physical

  • Metal housing
  • Dimensions (L x W x H): 3.94 x 7.48 x 1.1 in. (100 x 190 x 28 mm)
  • Net weight: 1.1 lbs. (500 g)
  • Gross weight: 2.51 lbs. (1.14 kg)


A minimum order amount of $50 is required to Maintain Wholesale Price

NEW IN THE BOX
