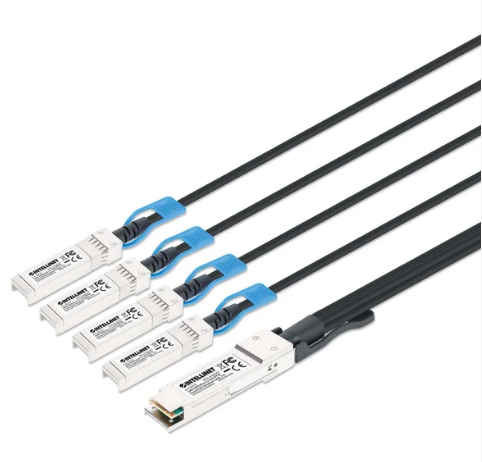

Intellinet 100G QSFP28 to 4 x 25G SFP28 Passive DAC Breakout Cable, 3 ft., IDAC-100G-4X25G-3, Part# 509756
Cables

Intellinet 100G QSFP28 to 4 x 25G SFP28 Passive DAC Breakout Cable, 3 ft., IDAC-100G-4X25G-3, Part# 509756

Availability: In Stock
$83.67
Wishlist Compare

The fast Intellinet 509756 100G QSFP28 to 4 x 25G SFP28 Passive DAC Breakout Cable, 3 ft., IDAC-100G-4X25G-3 is a One QSFP28 to Four SFP28, Cisco Compatible, MSA- and IBTA-compliant for Maximum Compatibility, Direct Attach Copper, AWG 30, in color Black.

Features:

  • Breaks out a single 100 Gigabit Ethernet port into four separate 25 Gigabit Ethernet connections
  • MSA-compliant for compatibility with leading switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and more (see specs)
  • Equivalent to the Cisco DAC Cable Cisco QSFP-4SFP25G-CU1M
  • IBTA-compliant to meet InfiniBand Trade Association standards, ensuring reliable performance and interoperability in Ethernet and InfiniBand networking environments
  • Supports multiple protocols including QDR InfiniBand, SAS, and FCP for flexible deployment across networking and storage applications
  • Passive Direct Attach Copper (DAC) twinax cable for cost-effective, low-latency, power-saving connections
  • Significantly lower power consumption and price point than fiber optic cables
  • Lower signal latency than RJ45 connections
  • Simpler deployment than cables in optical transceivers with fewer components having to match
  • Passive DAC as an ideal option in structured cabling for many short-distance applications
  • Produces zero heat and can be used in high operating temperatures up to 70°C (158°F)
  • Hot-swappable for seamless network upgrades or replacements
  • Durable zinc die-cast SFP28 and QSFP28 connectors with pull-to-release latches for secure connections and easy removal
  • Fully NDAA-compliant


Specifications:

Standards and Certifications

  • CE
  • UKCA
  • FCC
  • RoHS
  • REACH
  • IEEE 802.3ba
  • IEEE 802.3by
  • SFF-8402
  • SFF-8665

General

  • Power consumption: <0.1 W (per end)
  • Power requirement: 3.3 V
  • Applications: 100 Gigabit Ethernet
  • Maximum data transfer rate: 100 Gbps total aggregated bandwidth (25 Gbps per SFP28 channel)
  • Minimum bend radius: 60 mm (2.36 in.)
  • Impedance: 100 Ohm
  • Length: 1 m (3 ft.)
  • Net weight: 180 g (0.4 lbs.)
  • Gross weight: 190 g (0.42 lbs.)


Compatible Brands

  • Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and more


Connectors

  • One QSFP28 male
  • Four SFP28 males

Cable

  • 30 AWG
  • Type: passive copper, twinaxial
  • Jacket material: PVC

Operating Environment

  • Operation temperature: 0 - 70°C (32 - 158°F)
  • Storage temperature: -40 - 80°C (-40 - 176°F)

Package Contents

  • Passive DAC Twinax Breakout Cable


NEW IN THE BOX
