Intellinet 2 m LC to LC UPC Fiber Optic Patch Cable, 2.0 mm, Duplex, OFNR, OM5 Multimode, Lime Green, Part# 760881
Cables

Intellinet 2 m LC to LC UPC Fiber Optic Patch Cable, 2.0 mm, Duplex, OFNR, OM5 Multimode, Lime Green, Part# 760881

Availability: In Stock
$7.73
Wishlist Compare

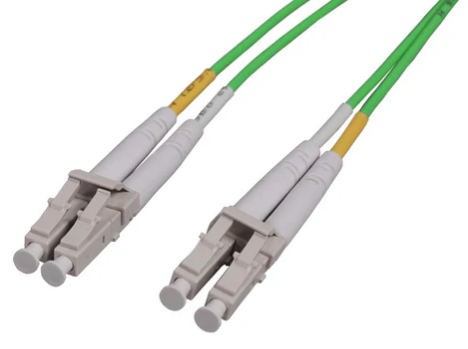

The quality Intellinet 760881 2 m LC to LC UPC Fiber Optic Patch Cable, 2.0 mm, Duplex, OFNR, OM5 Multimode, in color Lime Green is an 50/125 µm, Wideband Bend Insensitive Multimode Fiber (WBMMF), 6.6 ft long.

Features:

  • Versatile Connectivity: Ideal for interconnect and cross-connect applications in entrance facilities, telecommunications rooms, data centers, and at the desk.
  • UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss.
  • OM5 fiber optic cable offers higher bandwidth and faster data transmission over short to medium distances with fewer fiber cores.

Specifications:

  • Standards:
    - ISO/IEC 11801 OMS
    - IEC 60793-2-10 type Ala.4
    - TIA/ EIA-492AAAE
  • Connector type: LC UPC Duplex to LC UPC Duplex
  • Fiber count: 2 Fibers
  • Bend Radius: 15 mm
  • Fiber mode: Multi Mode OM5 50/125μm
  • Wavelength: 850/1310nm
  • Polarity: A (Tx) to B (Rx)
  • Cable outer diameter (OD): 2.0mm
  • Cable jacket: Riser (OFNR)
  • Ferrule material: Ceramic (zirconia)
  • Insertion loss: typical ≤0.3dB
  • Return loss: ≥55dB
  • Attenuation @ 850 / 1300 nm (dB/km): ≤ 3,2 / ≤ 0,8
  • Connector durability: 1000 insertion - extraction cycles min.
  • Operation temperature range: -20°C to +75°C



A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
