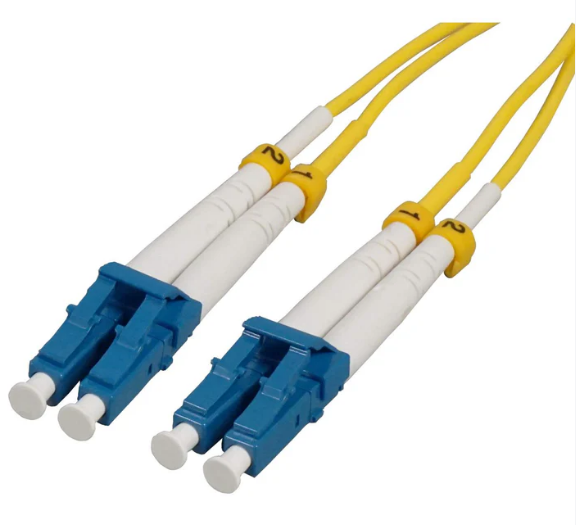

Intellinet 2 m LC to LC UPC Fiber Optic Patch Cable, 2.0 mm, Duplex, OFNR, Singlemode BIF, Yellow, Part# 751667
Cables

Intellinet 2 m LC to LC UPC Fiber Optic Patch Cable, 2.0 mm, Duplex, OFNR, Singlemode BIF, Yellow, Part# 751667

Availability: In Stock
$4.62
Wishlist Compare

The quality Intellinet 751667 2 m LC to LC UPC Fiber Optic Patch Cable, 2.0 mm, Duplex, OFNR, Singlemode BIF, Yellow, is a 9/125 µm, Bend Insensitive Fiber Cable G.657.A1, 6.6 ft length.

Features:

  • Versatile Connectivity: Ideal for interconnect and cross-connect applications in entrance facilities, telecommunications rooms, data centers, and at the desk.
  • UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss.
  • OS2 Single-Mode Fiber: Uses OS2 single-mode fiber, providing superior performance and longevity for high-speed network connections.



Specifications:

  • Connector type: LC UPC Duplex to LC UPC Duplex
  • Fiber count: 2 Fibers
  • Fiber grade: G.657.A1 (Compatible with G.652.D)
  • Bend Radius: 10.0mm
  • Fiber mode: Single Mode OS2 9/125μm
  • Wavelength: 1310/1550nm
  • Polarity: A (Tx) to B (Rx)
  • Cable outer diameter (OD): 2.0mm
  • Cable jacket: Riser (OFNR)
  • Ferrule material: Ceramic (zirconia)
  • Insertion loss: ≤0.3dB (1310nm/1550nm), typical ≤0.2dB
  • Return loss: ≥55dB (1310nm/1550nm
  • Attenuation at 1310nm: ≤0.35dB/km
  • Attenuation at 1550nm: ≤0.25dB/km
  • Connector durability: 1000 insertion - extraction cycles min.
  • Operation temperature range: -40°C +85°C
