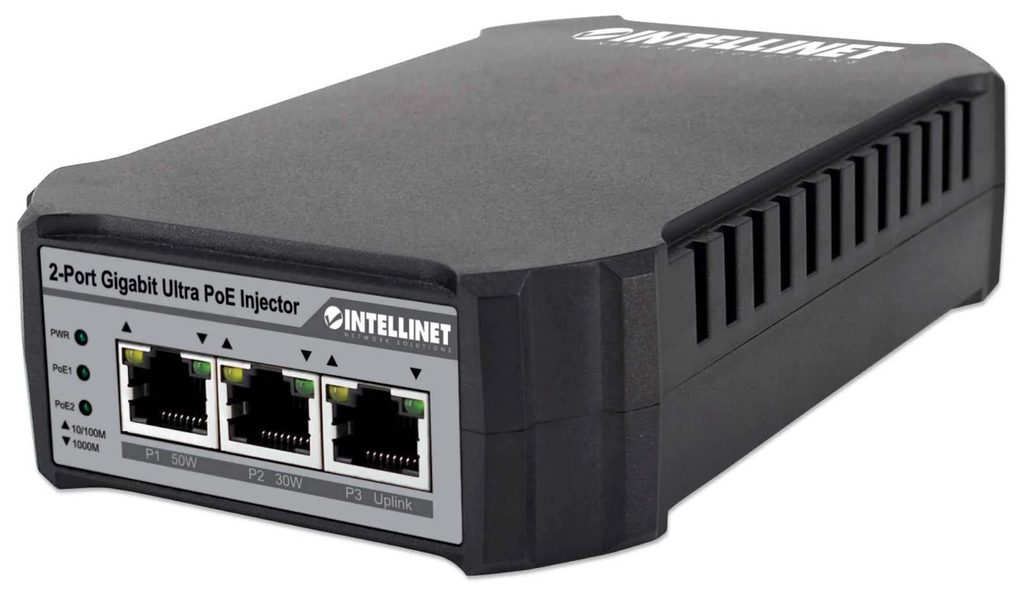

INTELLINET IPI-2G80 2-Port Gigabit Ultra PoE Injector, 80W, Plastic, Part# 561488
Power Over Ethernet Adapters

INTELLINET IPI-2G80 2-Port Gigabit Ultra PoE Injector, 80W, Plastic, Part# 561488

Availability: In Stock
$109.88
Wishlist Compare
The durable Intellinet 2-Port Gigabit Ultra PoE Injector 80 watts have one 50 W Port and One 30 W Port, Switching Capabilities, IEEE 802.3at/af Compliant with Plastic Housing helps to save time and money by delivering data and power via existing network cables, injects up to 50 W on the first port and up to 30 W on the second port to support IoT applications such as lighting, sensors and building automation.
Features:
  • Total PoE power budget of 80 watts
  • Power output up to 50 watts on port 1 and up to 30 watts on port 2
  • Short-circuit, overload and high-voltage protection
  • Supports all IEEE 802.3at- and IEEE 802.3af-compliant PoE devices (Wireless LAN access points and bridges, VoIP [Voice over Internet Protocol] telephones, IP surveillance cameras)
  • Distance support: up to 100 m (328 ft.)
  • Internal power supply
  • Can also be used as a 2-port PoE switch
  • Fanless design ideal for silent operation
  • Wall-mounting option

General

  • Media support:
    - 10Base-T Cat5 UTP/STP RJ45, 8 pin
    - 100Base-TX Cat5 UTP/STP RJ45, 8 pin
    - 1000Base-T Cat5e UTP/STP RJ45, 8 pin
  • Ports:
    - One RJ45 10/100/1000 Mbps port
    - One RJ45 10/100/1000 Mbps data and power output port (50 W)
    - One RJ45 10/100/1000 Mbps data and power output port (30 W)
  • Protection functions:
    - Short-circuit protection
    - Over-current protection
    - Over-voltage protection
  • Switch features:
    - Supports 2k MAC address entries
    - MAC address learning & aging
    - Store and forward switching architecture
    - Backplane speed: 6 Gbps

Package Contents:

  • 2-Port Gigabit Ultra PoE Injector
  • Power cable
  • Instructions



A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
