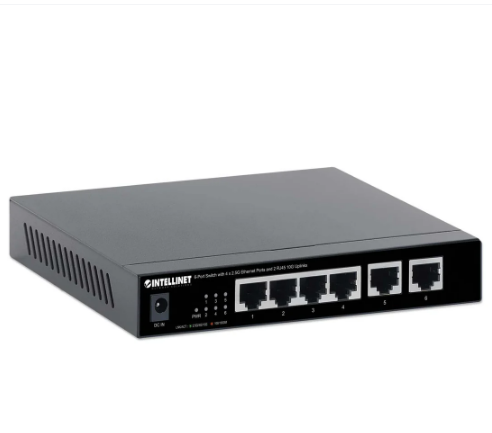

Intellinet 6-Port Switch with 4 x 2.5G Ethernet Ports and 2 RJ45 10G Uplinks, IES-04-2.5G02, Part# 562263
Hubs & Switches

Intellinet 6-Port Switch with 4 x 2.5G Ethernet Ports and 2 RJ45 10G Uplinks, IES-04-2.5G02, Part# 562263

Availability: In Stock
$137.76
Wishlist Compare

The quality Intellinet 562263 6-Port Switch with 4 x 2.5G Ethernet Ports and 2 RJ45 10G Uplinks, IES-04-2.5G02, with Four 10/100/1000/2500 Mbps RJ45 Ports, Two 10G RJ45 Uplink Ports, Unmanaged, Desktop Format, and Wall-mount Option.

Features:

  • Four high-speed 2.5GBASE-T RJ45 Ethernet ports, IEEE 802.3bz compliant
  • 10/100/1000/2500 Mbps auto-sensing ports that automatically detect optimal network speeds
  • Two RJ45 ports with 10G uplink capability
  • 60 Gbps switch fabric/switching capacity
  • Future-proof high-bandwidth connection; ideal for 2.5G servers, NAS devices, and Wi-Fi 6/7 access points
  • Backward compatible with 10/100/1000 Mbps devices
  • Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
  • Supports jumbo frames up to 12 kBytes
  • Store and forward switching architecture
  • Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
  • Supports 4k MAC address entries with Auto-learning and Auto-aging
  • Buffer memory of 8.1 Mbits
  • Compact desktop format with rugged metal housing
  • LEDs for power and link/activity
  • Fanless design for silent operation
  • Built-in wall-mounting holes and four rubber feet for desktop use
  • Fully TAA-compliant



Physical

  • Metal housing
  • Dimensions (D x W x H): 110 x 160 x 26 mm (4.33 x 6.3 x 1.02 in.)
  • Net weight: 560 g (1.23 lbs.)
  • Gross weight: 760 g (1.68 lbs.)
  • Operating temperature: 0 - 40°C (32 - 104°F)
  • Storage temperature: -40 - 70°C (-4 - 194°F)
  • Operating humidity: 10 - 90% RH, non-condensing
  • Storage humidity: 5 - 90% RH, non-condensing



Package Contents

  • 6-Port Switch with 4 x 2.5G Ethernet Ports and 2 RJ45 10G Uplinks
  • Power adapter



NEW IN THE BOX
