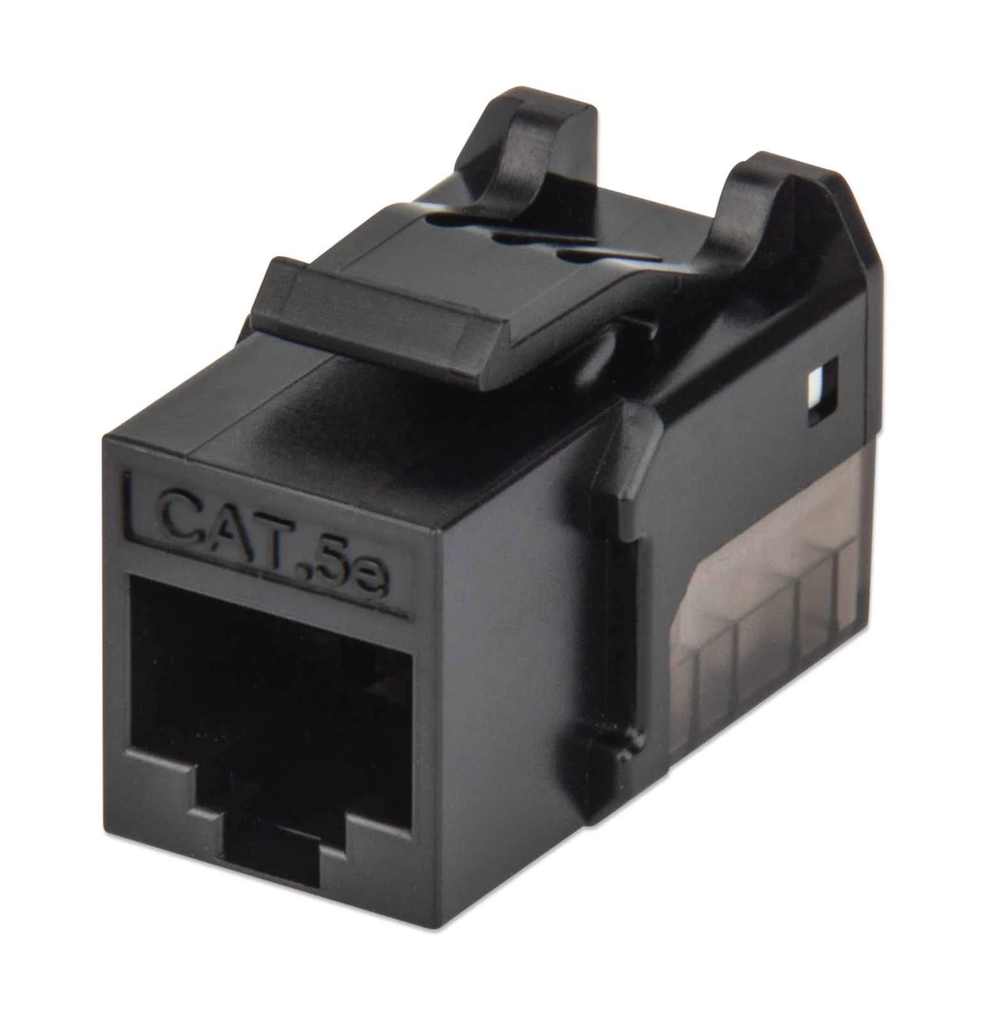

Intellinet BLACK FastPunch Cat5e Keystone Jack IKJ-C5E-BKEZ, Part# 771993
The intuitive designed Intellinet BLACK FastPunch Cat5e Keystone Jack makes the wires seat properly cutting in one smooth motion with the Intellinet FastPunch Keystone Jack Punchdown Tool, helps to easily terminates infrastructure cabling quickly with its structure.
Features:
- Makes terminations fast and easy by seating and cutting all wires in one smooth motion
- 50-µ gold-plated contacts
- Supports 23 to 26 AWG stranded and solid wire
- For unshielded twisted pair applications
- Cat5e performance is in compliance with ANSI/TIA/EIA 568-C.2 standard
- UL listed
- For use with Intellinet FastPunch Keystone Jack Punchdown Tool (#772402)
- Lifetime warranty
Specifications:
General
- For use with 23 to 26 AWG stranded and solid wire
- Connection type: IDC
- Certifications: RoHS, UL, ETL
Physical
- Housing material: ABS and polycarbonate
- Contacts: 50 µ gold-plated
- Weight: 8 g (0.28 oz.)
Environmental
- Operating temperature: -10 – 60°C (14 – 140°F)
- Operating humidity: 20 – 85% RH, non-condensing
- Storage temperature: -10 – 70°C (14 – 158°F)
Package Contents
- FastPunch Cat5e Keystone Jack
- Cable tie
- Instructions
Dimensions: 1.34 (L) x 0.77 (W) x 0.71 (H) [in.]
