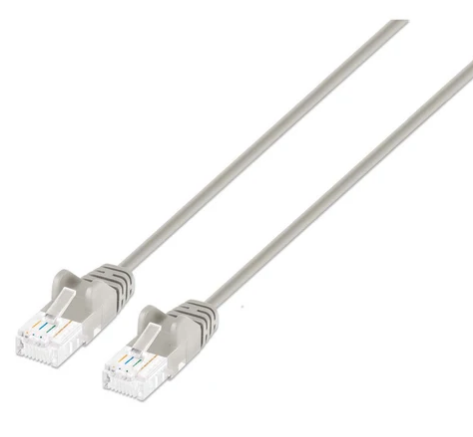

Intellinet Cat6a UTP Slim Network Patch Cable, Copper, 30 AWG, RJ45, .5ft (.15m), Gray, Part# 745772
network cable

Intellinet Cat6a UTP Slim Network Patch Cable, Copper, 30 AWG, RJ45, .5ft (.15m), Gray, Part# 745772

Availability: In Stock
$2.11
Wishlist Compare

The efficient Intellinet 745772 Cat6a UTP Slim Network Patch Cable has Copper, 30 AWG, RJ45, .5ft (.15m), in color Gray.

Features:

  • Certified Cat6a Class EA with 10G and 500 MHz in accordance with ISO/IEC 11801 and EN 50173-1
  • Pure bare copper wire for maximum conductivity
  • Gold-plated contacts for corrosion-free connections
  • Snag-free boots to smoothly and easily pull the cable without damaging the RJ45 connectors
  • Ultra-thin format for more flexibility and simplified cable management in dense installations
  • Ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
  • Heavy-duty strain relief
  • Compatible and color-coded with T568A and T568B
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Fully backward compatible with all the previous cable categories, including Category 6, 5e and 5



Specifications:

Standards and Certifications

  • ISO/IEC 11801
  • EN 50173-1
  • RoHS
  • REACH
  • IEEE 802.3an (10GBase-T)
  • Cat6a (ANSI/TIA-568.2-D)

General

  • Supported transfer speeds: up to 10 Gbps
  • Max. operating frequency: 500 MHz
  • Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
  • Mating cycles: ≥750

Connectors

  • Two RJ45 male
  • 6 microinch gold-plated contacts

Cable

  • 30 AWG
  • Shielding: U/UTP
  • PVC CM jacket
  • Wire: 100% pure bare copper (Cu)
  • Jacket OD: 0.157 in. (4.0 mm)
  • Conductor type: stranded
  • Cable type: round
  • Length: 0.5 ft. (0.15 m)
  • Net weight: 0.35 oz. (10 g)
  • Gross weight: 0.42 oz. (12 g)

Environmental

  • Operating temperature: 0 - 45°C (32 - 113°F)
  • Storage temperature: -10 - 70°C (14 - 158°F)
  • Operating humidity (non-condensing): 10 - 90% RH

Package Contents

  • Cat6a U/UTP Slim Network Patch Cable



A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
