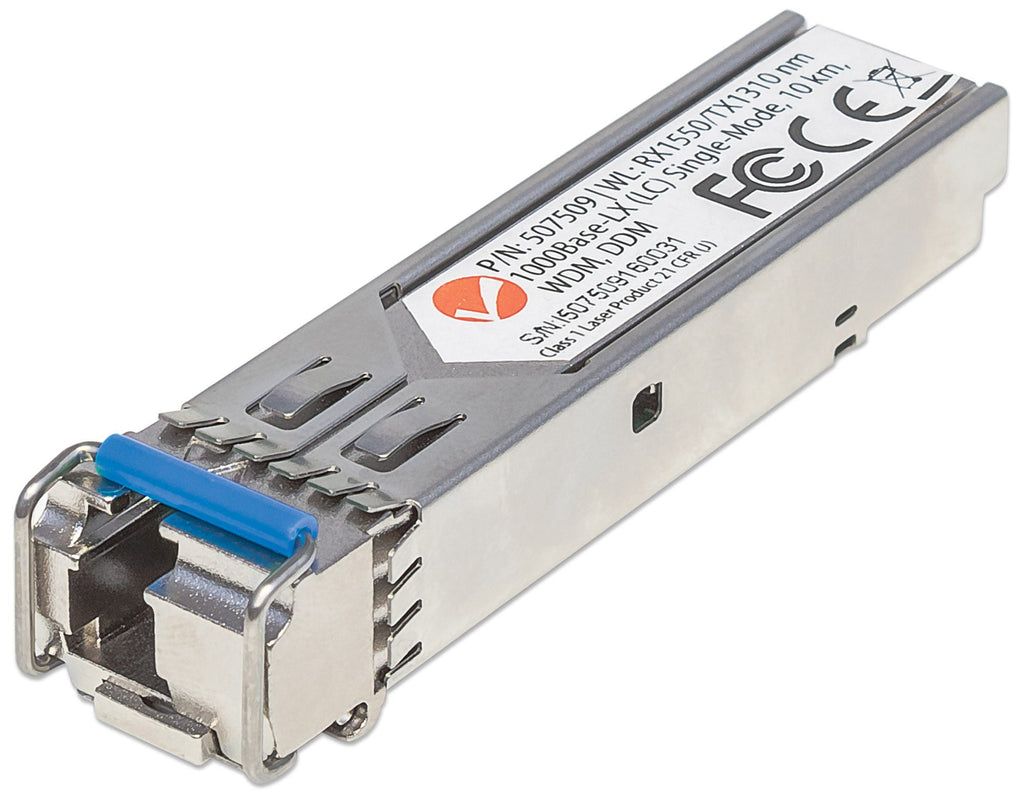

Intellinet ISFP-1G-LCSM-WDMR-10KM, Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module, Part# 507509
The efficient Intellinet 507509 Bi-Directional SFP Optical Transceiver Module with Gigabit Fiber has 1000Base-LX (LC) Single-Mode Port, 10 km (6.2 mi.), WDM (RX1550/TX1310, that fits any Intellinet Gigabit Ethernet switch with SFP module slots or any MSA or Cisco compliant SFP port.
Features:
- Must be used with Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module, Intellinet model 507486, or Cisco model GLC-BX-D
- Data transfer rate: 1000 Mbps
- One 1000Base-LX single-mode Fiber LC port
- Fiber distance support: up to 10 km (6.2 mi.)
- WDM (wavelength division multiplexing) technology utilizes only one strand of fiber to transmit data on separate receive and transmit wavelengths
- Wavelengths: receive (RX), 1550 nm; transmit (TX), 1310 nm
- Compliant with the SFP Multi-Source Agreement (MSA)
- Equivalent to the Cisco GLC-BX-U transceiver
- SFP standard form factor
- Supports digital diagnostics monitoring (DDM)
- Low EMI due to fully metallic housing
- Supports hot-plugging
- Three-Year Warranty
Dimensions: 2.24 (L) x 0.55 (W) x 0.47 (H) [inches]
A minimum order amount of $50 is required in order to Maintain Wholesale Price
NEW IN THE BOX
