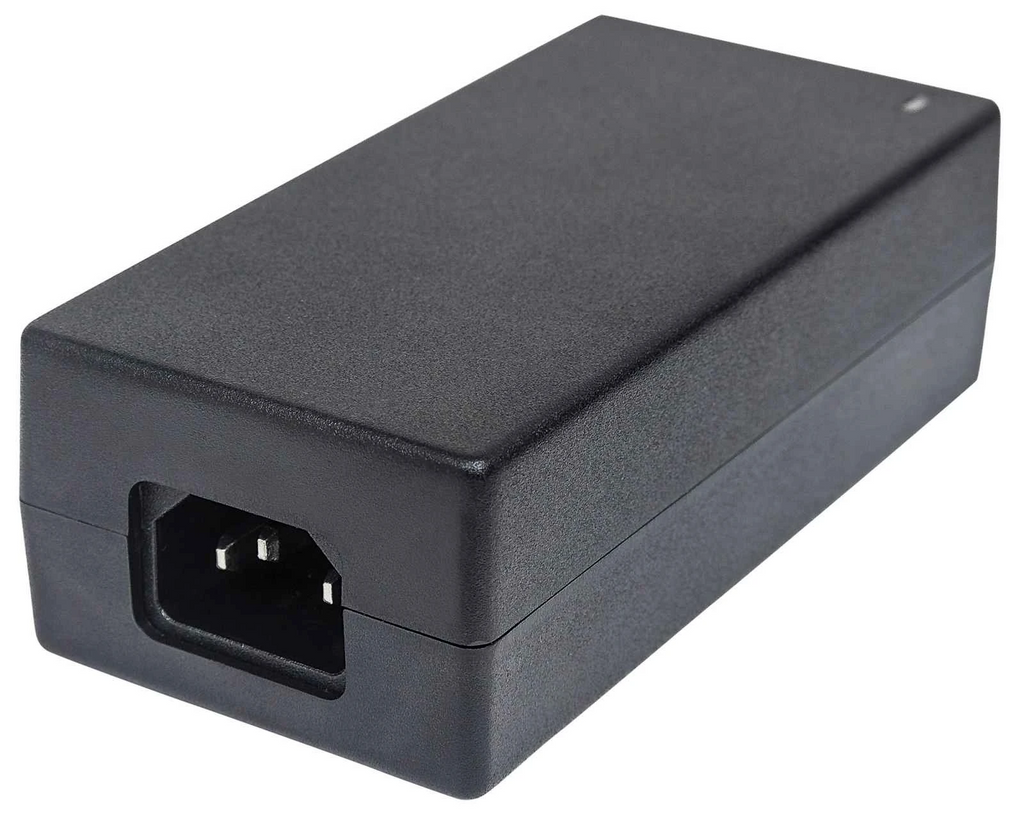

Intellinet Gigabit Ultra PoE Injector IPI-60G, Part# 561235

The efficient Intellinet 561235 Gigabit Ultra PoE Injector has one 60 W Port, IEEE 802.3at/af Compliant with Plastic Housing that saves time and money by delivering data and power via existing network cables.

 Features:

• The power output of up to 60 watts over a four-pair Cat5 or Cat6 network cable
• Supports all IEEE 802.3at- and IEEE 802.3af-compliant PoE devices (Wireless LAN access points and bridges, VoIP [Voice over Internet Protocol] telephones, IP surveillance cameras)
• Distance support: up to 100 m (328 ft.)
• Internal power supply
• Fanless design ideal for silent operation
• Three-Year Warranty

General

• Media support:
  - 100Base-TX Cat5 UTP/STP RJ45, 8 pin
  - 1000Base-T Cat5e UTP/STP RJ45, 8 pin
• Ports:
  - One RJ45 10/100/1000 Mbps input port
  - One RJ45 10/100/1000 Mbps data and power output port
• Protection functions:
  - Short circuit protection
  - Over current protection
  - Over-voltage protection
• PoE Pinout
  - Pin 1: DC (-)
  - Pin 2: DC (-)
  - Pin 3: DC (+)
  - Pin 4: DC (+)
  - Pin 5: DC (+)
  - Pin 6: DC (+)
  - Pin 7: DC (-)
  - Pin 8: DC (-)
• Certifications: FCC Class B, CE

  LED
• Dual-color power and PoE LED

  Power
• Input: 100 – 240 V AC, 50 – 60 Hz
• Output: 48 V DC, 1.25 A
• Power consumption: 60 watts (maximum)



Environmental:

• Plastic housing
• Dimensions: 123 (L) x 61 (W) x 40 (H) [mm] / 4.84 (L) x 2.4 (W) x 1.57 (H) [in]
• Weight: 0.29 kg (0.64 lbs.)
• Operating temperature: 0 – 40°C (32 – 104°F)
• Operating humidity: 10 – 90% RH, non-condensing
• Storage temperature: -20 – 80°C (-4 – 176°F)


Package Contents:

• Gigabit Ultra PoE Injector
• Power cable
• Instructions

Dimensions: 5.75 (L) x 2.44 (W) x 1.57 (H) [inches]
