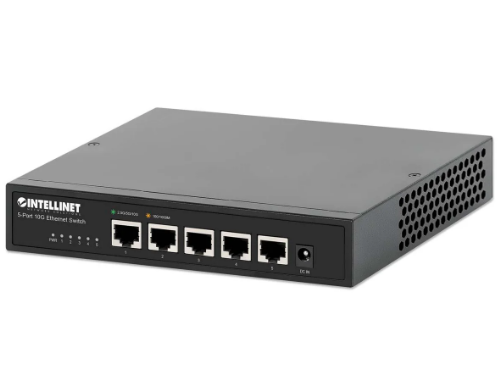

Intellinet IES-05-10G 5-Port 10G Ethernet Switch, Part# 562201
Adapters

Intellinet IES-05-10G 5-Port 10G Ethernet Switch, Part# 562201

Availability: In Stock
$223.60
Wishlist Compare

The quality Intellinet 562201 IES-05-10G 5-Port 10G Ethernet Switch with five 100 Mbps/1G/2.5G/5G/10G RJ45 Ports, Unmanaged, Desktop Format, Wall-mount Option.

Features:

  • Five ultra-fast 10GBASE-T RJ45 Ethernet ports, IEEE 802.3an compliant
  • 100 Mbps/1/2.5/5/10 Gbps auto-sensing ports that automatically detect optimal network speeds
  • 100 Gbps switch fabric/switching capacity
  • Future-proof high-bandwidth connection; ideal for 10G servers, NAS devices, and Wi-Fi 6/7 access points
  • Backward compatible with 100/1000/2500/5000 Mbps devices
  • Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
  • Supports jumbo frames up to 12 kBytes
  • Store and forward switching architecture
  • Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
  • Supports 16k MAC address entries with Auto-learning and Auto-aging
  • Buffer memory of 12 Mbits
  • Compact desktop format with rugged metal housing
  • LEDs for power and link/activity
  • Fanless design for silent operation
  • Built-in wall-mounting holes and four rubber feet for desktop use
  • Fully TAA-compliant

Physical:

  • Metal Housing
  • Dimensions (L x W x H): 145 x 180 x 34 mm (5.71 x 7.09 x 1.34 in.)
  • Net weight: 966 g (2.13 lbs.)
  • Gross weight: 1.31 kg (2.89 lbs.)
  • Operating temperature: 0 - 40°C (32 - 104°F)
  • Storage temperature: -40 - 70°C (-4 - 194°F)
  • Operating humidity: 10 - 90% RH, non-condensing
  • Storage humidity: 5 - 90% RH, non-condensing

Package Contents:

  • 5-Port 10 GbE Ethernet Switch
  • Power adapter
  • Four rubber feet
  • Instructions



NEW IN THE BOX
