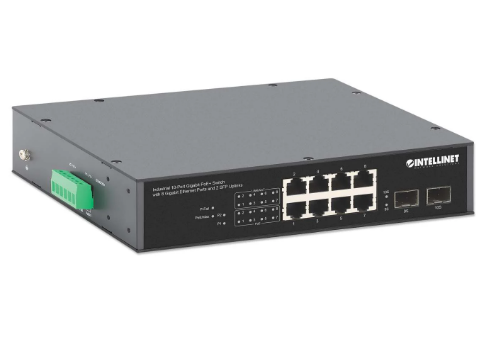

Intellinet IIS-8G02POE-120W, 8-Port PoE+ 2 x SFP, -20 - 65C, 240W, Part# 509565
Hubs & Switches

Intellinet IIS-8G02POE-120W, 8-Port PoE+ 2 x SFP, -20 - 65C, 240W, Part# 509565

Availability: In Stock
$189.75
Wishlist Compare

The quality Intellinet 509565 IIS-8G02POE-120W 8-Port PoE+ 2 x SFP, -20 - 65C, 240W is a IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget up to 120 W, IP30-Rated Metal Housing, Redundant Power Supply, DIN-Rail Mount.

Features:

  • Provides up to eight PoE network devices with power and data
  • PoE power budget of 240 watts (depending on the power supply used)
  • Two small form-factor pluggable (SFP) GBIC module slots for 1G uplink capability
  • IP30 slim-type metal housing to withstand harsh industrial conditions
  • Suitable for extreme operating temperatures of -20 to 65ºC (-4 to 149ºF)
  • Power output up to 30 watts per port
  • Option for DIN-rail installation
  • 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
  • Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
  • Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
  • Two redundant DC inputs (48 - 55 V) with I/O terminal block
  • ESD protection up to 8 kV (air) and 4 kV (contact)
  • Port surge protection up to 6 kV
  • Grounding point to protect equipment from external electrical surges
  • 20 Gbps switch fabric / switching capacity
  • Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
  • Supports 4k MAC address entries with Auto-Learning and Auto-Aging
  • Buffer memory of 1.5 Mbits
  • Supports jumbo frames up to 9 kBytes
  • Store and forward switching architecture
  • Full/half duplex operation
  • IEEE 802.3x flow control for full duplex
  • LEDs for power, link/activity and PoE
  • Fanless design for silent operation
  • Requires additional industrial power supply (not included)
  • Fully TAA-compliant



Physical

  • IP30-rated metal housing
  • DIN rail: In accordance with IEC/EN 60715 (top hat)
  • Dimensions (L x W x H): 210 x 161 x 45 mm (8.27 x 6.34 x 1.77 in.)
  • Net weight: 1.09 kg (2.4 lbs.)
  • Gross weight: 1.41 kg (3.11 lbs.)
  • Operating temperature: -20 - 65°C (-4 - 149°F)
  • Storage temperature: -40 - 85°C (-40 - 185°F)
  • Operating humidity: 10 - 95% RH, non-condensing
  • Storage humidity: 10 - 95% RH, non-condensing
  • Recommended AWG for terminal block: 12-24



NEW IN THE BOX
