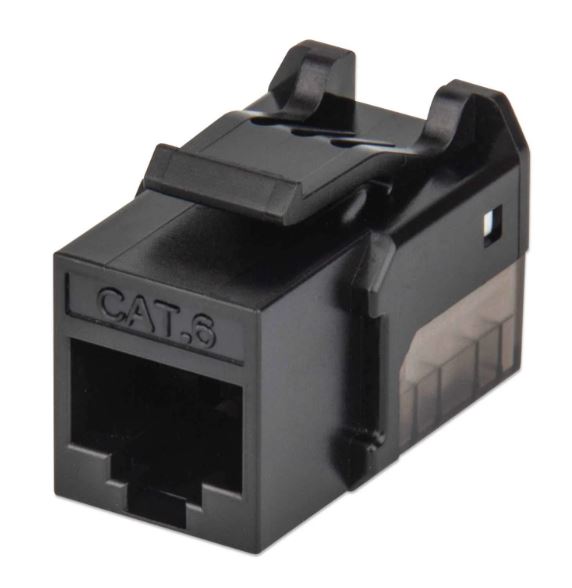

INTELLINET IKJ-C6-BKEZ FastPunch Cat6 Keystone Jack UTP, Black, Part# 772280

The quality Intellinet IKJ-C6-BKEZ FastPunch Cat6 Keystone Jack UTP, Black, makes terminations easy by seating and cutting all wires in one smooth motion made from 50-µ gold-plated contacts that supports 23 to 26 AWG stranded and solid wire.

Features:

• For unshielded twisted pair applications
• Cat6 performance, in compliance with ANSI/TIA-568.2-D standard
• UL listed
• For use with Intellinet FastPunch Keystone Jack Punchdown Tool (#772402)
• Lifetime warranty

General

• For use with 23 to 26 AWG stranded and solid wire
• Connection type: IDC
• Certifications: RoHS, UL, ETL

Physical

• Housing material: ABS and polycarbonate
• Contacts: 50-µ gold-plated
• Dimensions: 34 (L) x 19.5 (W) x 18 (H) [mm] / 1.34 (L) x 0.77 (W) x 0.71 (H) [in.] •
• Weight: 8 g (0.28 oz.)

Environmental

• Operating temperature: -10 – 60°C (14 – 140°F)
• Operating humidity: 20 – 85% RH, non-condensing
• Storage temperature: -10 – 70°C (14 – 158°F)

Package Contents

• FastPunch Cat6 Keystone Jack
• Cable tie
• Instructions
