Intellinet Industrial 10G PoE++ Splitter 90 W, IPIK-90-10G, Part# 509633

Availability: In Stock
$91.83
Wishlist Compare

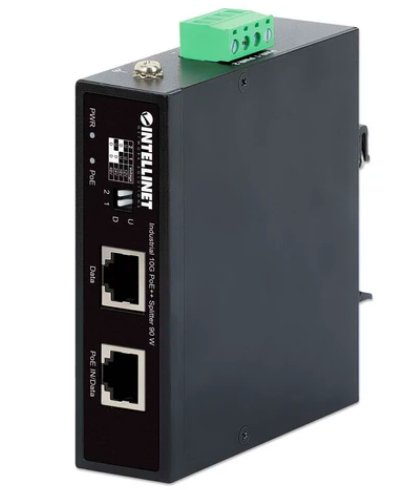

The durable Intellinet 509633 Industrial 10G PoE++ Splitter 90 W, IPIK-90-10G is an IEEE 802.3bt (4PPoE) Compliant, up to 90 W Input, 12/16/24/48 V DC Output, 100 Mbps/1G/2.5G/5G/10G RJ45 Ports, IP50-rated Metal Housing, DIN-Rail Mount, and Wall-Mount Option

Features:

  • Splits an IEEE 802.3bt PoE++ connection into power and Gigabit Ethernet for non-PoE devices
  • Selectable DC outputs with 12, 16, or 24 V (2.3 A) or 48 V (1.25 A) via 4-pin terminal block
  • One RJ45 input port up to 90 W from an IEEE 802.3bt/at/af-compliant PoE injector or PoE switch (PSE)

Specifications:

Standards

  • IEEE 802.3af (Power over Ethernet)
  • IEEE 802.3at (High-Power PoE+ Power over Ethernet)
  • IEEE 802.3bt (PoE++/4PPoE Power over Ethernet)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • IEEE 802.3ab (1000BASE-T Gigabit Ethernet)
  • IEEE 802.3bz (2.5G/5G/10GBASE-T Ethernet)

General

  • Media support:
    - 100Base-TX Cat5e/6/6a UTP/STP RJ45
    - 1000Base-T Cat5e/6/6a UTP/STP RJ45
    - 2.5G/5GBase-T Cat5e/Cat6/6a UTP/STP RJ45
    - 10GBase-T Cat6/6a or higher UTP/STP RJ45
  • Ports:
    - One RJ45 10G PoE input port
    - One RJ45 10G data output port
    - One DC output with 4-pin terminal block
  • Certifications: FCC, CE, RoHS, REACH, UKCA, TAA
  • MTBF: 1M hours

Power

  • Input power: IEEE 802.3bt/at/af compliant PSE, 90.0 W max., 42.5 - 57.0 V DC
  • Max. output power:
    - 12.0 V DC, 2.3 A, 27.6 W (max.)
    - 16.0 V DC, 2.3 A, 36.8 W (max.).
    - 24.0 V DC, 2.3 A, 55.2 W (max.)
    - 48.0 V DC, 1.25 A, 60.0 W (max.)
  • Power consumption: 90.0 W (max.)

DIP switch settings

  • DIP2: U, DIP1: U - 12.0 V output (2.3 A max.)
  • DIP2: D, DIP1: U - 16.0 V output (2.3 A max.)
  • DIP2: U, DIP1: D - 24.0 V output (2.3 A max.)
  • DIP2: D, DIP1: D - 48.0 V output (1.25 A max.)

PoE Pinout

  • Pin1: DC(-)
  • Pin2: DC(-)
  • Pin3: DC(+)
  • Pin4: DC(+)
  • Pin5: DC(+)
  • Pin6: DC(+)
  • Pin7: DC(-)
  • Pin8: DC(-)

Terminal block Pinout
- Pin 1: V+
- Pin 2: V-
- Pin 3: V+
- Pin 4: V-

LED

  • PD Power In
  • DC Power Out

Physical

  • IP50-rated metal housing
  • DIN-rail: In accordance with IEC/EN 60715 (top hat)
  • Dimensions (L x W x H): 99 x 90 x 28 mm (3.9 x 3.54 x 1.1 in.)
