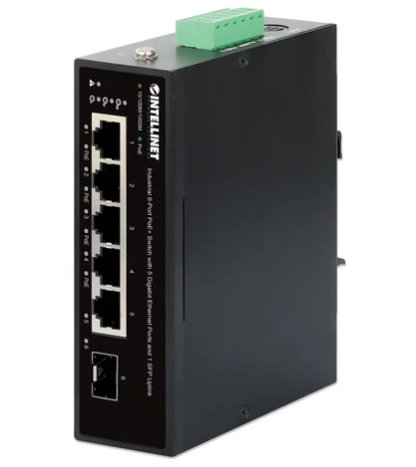

Intellinet Industrial 6-Port PoE+ Switch with 5 Gigabit Ethernet Ports and 1 SFP Uplink, IIS-5G01POE-120W, Part# 509558
Hubs & Switches

Intellinet Industrial 6-Port PoE+ Switch with 5 Gigabit Ethernet Ports and 1 SFP Uplink, IIS-5G01POE-120W, Part# 509558

Availability: In Stock
$217.36
Wishlist Compare

The efficient Intellinet 509558 Industrial 6-Port PoE+ Switch with 5 Gigabit Ethernet Ports and 1 SFP Uplink, IIS-5G01POE-120W is an IEEE 802.3at/af Compliant, Four PSE PoE+ Ports (up to 30 W per port), PoE Power Budget up to 120 W, IP50-Rated Metal Housing, Redundant Power Supply, DIN-Rail Mount and Wall-Mount Option

Features:

  • Offers five Gigabit RJ45 Ethernet ports, with four supporting PoE+ to provide both power and data to connected devices
  • One small form-factor pluggable (SFP) GBIC module slot for 1G uplink capability
  • PoE power budget of 120 watts (depending on the power supply used)

Standards

  • IEEE 802.3 (10Base-T Ethernet)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
  • IEEE 802.3af (Power over Ethernet 802.3at Type 1)
  • IEEE 802.3at (Power over Ethernet 802.3at Type 2)
  • IEEE 802.3az (Energy Efficient Ethernet EEE)
  • IEEE 802.3x (Flow control for full-duplex mode)
  • IEEE 802.3z (1000BASE-X Gigabit Ethernet)

General

  • Media support:
    - 10Base-T Cat5e/6/6a UTP/STP RJ45
    - 100Base-TX Cat5e/6/6a UTP/STP RJ45
    - 1000Base-T Cat5e/6/6a UTP/STP RJ45
  • Packet filter/forwarding rate:
    - 1,488,000 pps (1000 Mbps)
    - 148,800 pps (100 Mbps)
    - 14,880 pps (10 Mbps)
  • MAC address table: 2k
  • Buffer memory: 2 MBits
  • Backplane speed/switching capacity: 24 Gbps
  • Switch architecture: store and forward
  • Certifications: FCC, CE, RoHS, REACH, UKCA, TAA
  • MTBF: 1M hours

Electrical

  • Via DC industrial power supply (not included), 6-pin terminal block
    - Input: 48.0 - 57.0 V, up to 5.21 A
    - PoE power budget: 120.0 W (max.)
  • DC output: up to 30.0 W per RJ45 PoE port

LEDs

  • Power
  • Alarm
  • LAN
  • SFP
  • PoE

Pinout RJ45 output ports:
- Pin 1: DC (+)
- Pin 2: DC (+)
- Pin 3: DC (-)
- Pin 6: DC (-)

Terminal block Pinout
- PWR2: Pin 1 (V+) and Pin 2 (V-)
- PWR3: Pin 5 (V+) and Pin 6 (V-)
- ALARM: Pin 3 (+) and Pin 4 (-)



Package Contents

  • 6-Port PoE+ Switch with 5 Gigabit Ethernet Ports and 1 SFP Uplink
  • Instructions

Dimensions (L x W x H): 5 x 3.98 x 1.53 inches



A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
