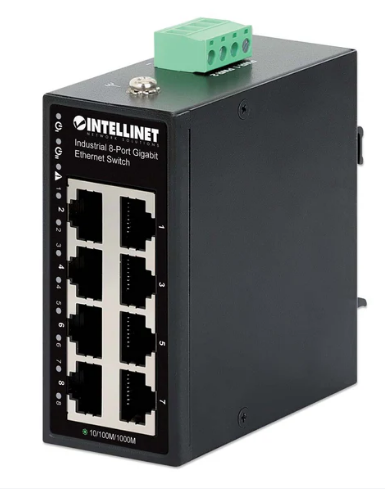

Intellinet Industrial 8-Port Gigabit Ethernet Switch, IIS-8G, Part# 509503
Ethernet Switch

Intellinet Industrial 8-Port Gigabit Ethernet Switch, IIS-8G, Part# 509503

Availability: In Stock
$88.78
Wishlist Compare

The quality Intellinet 509503 Industrial 8-Port Gigabit Ethernet Switch, IIS-8G is an Eight 10/100/1000 Mbps RJ45 Ports, IP50-Rated Metal Housing, Redundant Power Supply, DIN-Rail Mount, and Wall-Mount Option.

Features:

  • Offers eight Gigabit RJ45 Ethernet ports to provide data to connected devices
  • 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
  • IP50 slim-type metal housing to withstand harsh industrial conditions

Standards

  • IEEE 802.3 (10Base-T Ethernet)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
  • IEEE 802.3x (Flow control for full-duplex mode)



General

  • Media support:
    - 10Base-T Cat5e/6/6a UTP/STP RJ45
    - 100Base-TX Cat5e/6/6a UTP/STP RJ45
    - 1000Base-T Cat5e/6/6a UTP/STP RJ45
  • Packet filter/forwarding rate:
    - 1,488,089 pps (1000 Mbps)
    - 148,809pps (100 Mbps)
    - 14,880 pps (10 Mbps)
  • MAC address table: 4k
  • Buffer memory: 192 KB
  • Backplane speed / switching capacity: 16 Gbps
  • Switch architecture: store and forward
  • Certifications: FCC, CE, RoHS, REACH, UKCA, TAA
  • MTBF: 1M hours

Electrical

  • Via DC industrial power supply (not included), 4-pin terminal block
    - Input: 9.0 - 60.0 V, up to 2.3 A

Power consumption
- 4.722 W (max.)

LEDs

  • Power
  • Alarm
  • LAN

Dimensions: 3.35 (L) x 3.15 (W) x 1.54 (H) inches



A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
