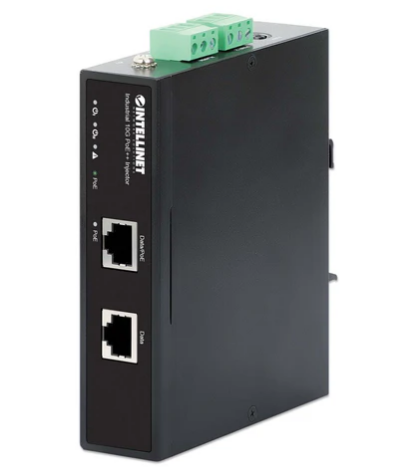

Intellinet IPII-120-10G, Industrial 10G PoE++ Injector, Part# 509619
Hubs & Switches

Intellinet IPII-120-10G, Industrial 10G PoE++ Injector, Part# 509619

Availability: In Stock
$102.04
Wishlist Compare

The efficient Intellinet 509619 IPII-120-10G Industrial 10G PoE++ Injector is a one-120 W Port, IEEE 802.3bt (4PPoE) Compliant, IP50-Rated Metal Housing, with DIN rail Mount, and wall Mount Option.

Features:

  • Power over Ethernet with output up to 120 watts
  • Ultra-fast 10GBASE-T RJ45 Ethernet port, IEEE 802.3bz compliant
  • IP50-rated metal housing to withstand harsh industrial conditions

Standards

  • IEEE 802.3af (Power over Ethernet)
  • IEEE 802.3at (High-Power PoE+ Power over Ethernet)
  • IEEE 802.3bt (PoE++/4PPoE Power over Ethernet)
  • IEEE 802.3 (10Base-T Ethernet)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • IEEE 802.3ab (1000BASE-T Gigabit Ethernet)
  • IEEE 802.3bz (2.5G/5G/10GBASE-T Ethernet)

General

  • Media support:
    - 10Base-T Cat3/4/5/5e/6/6a UTP/STP RJ45
    - 100Base-TX Cat5/5e/6/6a UTP/STP RJ45
    - 1000Base-T Cat5e/6/6a UTP/STP RJ45
    - 2.5G/5GBase-T Cat5e/Cat6/6a UTP/STP RJ45
    - 10GBase-T Cat6/6a or higher UTP/STP RJ45
  • Ports:
    - One RJ45 10G data input port
    - One 3-pin terminal block power input port
    - One RJ45 PoE power + 10G data output port
  • Certifications: FCC, CE, RoHS, REACH, UKCA, TAA
  • MTBF: 1M hours

Electrical

  • DC input: 48.0 - 57.0 V DC, up to 2.3 A, 3-pin terminal block
  • DC output: 120.0 W, 54.0 V DC, RJ45 PoE port
  • Power consumption: 125.0 W (max.)

PoE Pinout

  • Pin 1: DC (-)
  • Pin 2: DC (-)
  • Pin 3: DC (+)
  • Pin 4: DC (+)
  • Pin 5: DC (+)
  • Pin 6: DC (+)
  • Pin 7: DC (-)
  • Pin 8: DC (-)



DC input pin assignment

  • PWR1 +
  • PWR1 -
  • GND

LEDs

  • Power 1
  • Power 2
  • Alarm
  • PoE



A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
