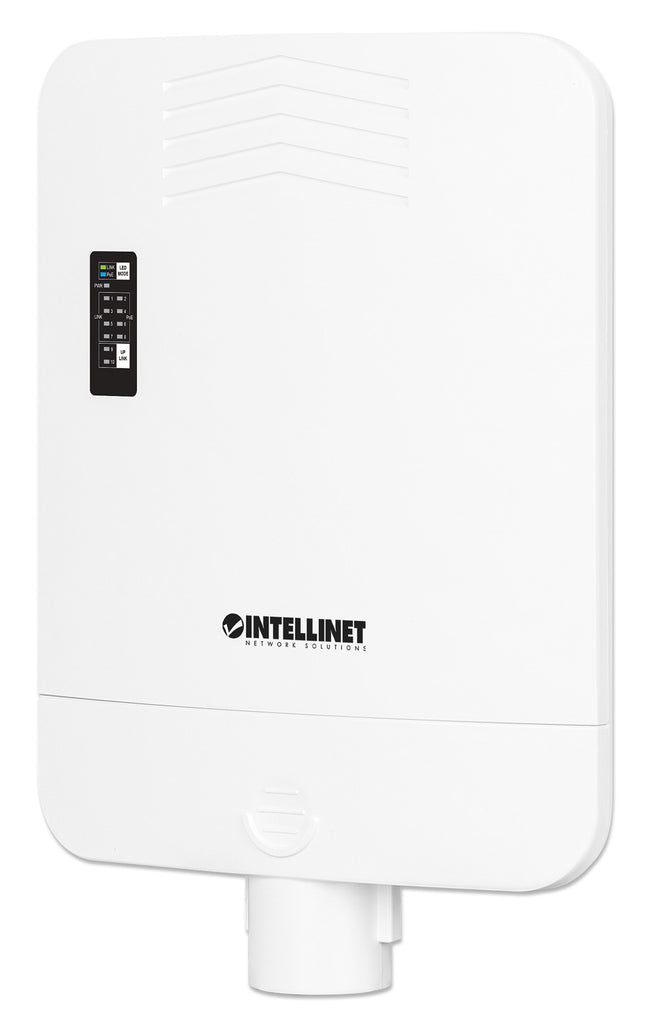

Intellinet Outdoor 10-Port L2+ Fully Managed PoE+ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks, IPS-08GM02-OD85W, Part# 562324
Ethernet Switch

Intellinet Outdoor 10-Port L2+ Fully Managed PoE+ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks, IPS-08GM02-OD85W, Part# 562324

Availability: In Stock
$193.88
Wishlist Compare

The efficient Intellinet 562324 Outdoor 10-Port L2+ Fully Managed PoE+ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks, IPS-08GM02-OD85W is a 85 W PoE Power Budget, IEEE 802.3at/af (PoE+/PoE) Compliant, Layer 2+/Layer 3 Lite, Two 1G SFP Open Slots, Self-Healing Network, Rainproof IP65, NEMA 4, for Wall- and Pole-Mounting.

Features:

  • Provides up to 8 PoE network devices with power and data
  • Two 1G small form-factor pluggable (SFP) module slots
  • Self-Healing Network - the Powered Device Monitor feature (PDM), also known as PD Alive Check, restarts any connected PoE device that fails to respond or send out network traffic
  • Domotz compatible for cloud management
  • PoE power budget of 85 watts
  • IP65-rated, dustproof and waterproof
  • Suitable for extreme operating temperatures of -20 to 60ºC (-4 to 140ºF)
  • Power output up to 30 watts per port
  • Supports VLAN (tag-based and port-based)
  • 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
  • Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
  • Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
  • Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
  • 20 Gbps switch fabric / switching capacity
  • SNMP Management and Remote Monitoring (RMON)
  • IPv4/v6 dual protocol
  • Supports link aggregation (trunking)
  • IGMP Snooping for multicast filtering
  • Supports bandwidth control per port
  • Supports port mirroring
  • Supports two types of QoS: CoS and DSCP
  • Broadcast storm control with multicast packet rate settings
  • Supports jumbo frames up to 16 kBytes
  • Store and forward switching architecture
  • Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
  • Supports 8k MAC address entries with Auto-learning and Auto-aging
  • Buffer memory of 4.1 Mbits
  • Secure Command Line Interface (CLI) management with SSH
  • Configuration via Web browser, SNMP/Remote Monitoring (RMON), Telnet or SSH
  • LEDs for power, link/activity, and PoE
  • Grounding point to protect equipment from external electrical surges
  • PoE surge protection up to 4 kV for all RJ45 ports
  • Bracket with installation holes on the back, suitable for wall and pole mounting
  • Fanless design
  • Plug-and-play installation; no configuration required
  • Fully NDAA-compliant
  • Three-year warranty


Specifications:

Standards

  • IEEE 802.1p (Traffic Prioritization)
  • IEEE 802.1q (VLAN Tagging)
  • IEEE 802.3ad (Link Aggregation)
  • IEEE 802.3 (10Base-T Ethernet)
  • IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
  • IEEE 802.3ad (Link Aggregation Control Protocol LACP)
  • IEEE 802.3af (Power over Ethernet 802.3at Type 1)
  • IEEE 802.3at (Power over Ethernet 802.3at Type 2)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • IEEE 802.3x (flow control, for full-duplex mode)

General

  • Ports
    - 8 x 10/100/1000 Mbps RJ45 PoE-enabled ports
    - Two 1G SFP slots
  • Media support
    - 10Base-T Cat5e/6/6a/8.x UTP/STP RJ45
    - 100Base-TX Cat5e/6/6a/8.x UTP/STP RJ45
    - 1000Base-T Cat5e/6/6a/8.x UTP/STP RJ45
  • MAC address table: 8k
  • Buffer memory: 4.1 Mbits
  • Forwarding rate: 14.9 Mpps
  • MTBF: >50k hours
  • Backplane speed/switch fabric: 20 Gbps
  • Switch architecture: store and forward
  • Smart configuration options:
    - 802.1x authentication
    - ACL Access Control List
    - Broadcast Storm configuration with broadcast rate, multicast rate, and flooded unicast rate
    - Cable diagnostic
    - DHCP: Client/Option82/Snooping with enhanced security - supports dynamic ARP binding to prevent ARP spoofing, dynamic IP/MAC/port binding, and stationary port configuration to block unauthorized DHCP servers.
    - IGMP Snooping via command line
    - Port link speed: 10 Mbps, 100 Mbps, 1000 Mbps or auto-negotiation
    - Flow control on/off per port
    - LAN settings (IP address, DHCP, Gateway, etc.)
    - MAC address management, learning & aging, MAC filter
    - Ping utility
    - Port Mirroring, one to one or many to one
    - Port Aggregation/LACP: 8 groups
    - Quality of Service (QoS)
    - Link Layer Discovery Protocol (LLDP) - Station and Media Access Control Connectivity Discovery
    - Radius server via command line
    - Rate limiting (ingress rate and egress rate)
    - RMON groups (statistic, history, alarm and event)
    - SNMPv1/v2c/v3 (Simple Network Management Protocol)
    - Spanning tree (STP, RSTP, MSTP)
    - TACAS+ via command line
    - Tracert utility
    - VLAN
  • PD monitor function, watch guard
  • PoE Scheduling
  • Switch architecture: store and forward
  • Flow control on/off per port
  • Access management filtering: SNMP, HTTP, HTTPS, SSH, TELNET Quality of Service (QoS): CoS or DSCP
  • Link Layer Discovery Protocol (LLDP)
  • Integrated ICMP Ping client sends ping requests to other network nodes
  • SNMPv1/v2c/v3 (Simple Network Management Protocol)
  • RMON (1, 2, 3 and 9 groups)
  • LAN settings (IP address, Gateway, etc.)
  • SSH
  • Certifications: FCC, CE, RoHS, REACH, UKCA, NDAA

LEDs

  • PoE
  • Power
  • Link/Activity
  • System

Pinout RJ45 output ports
- Pin 1: DC (-)
- Pin 2: DC (-)
- Pin 3: DC (+)
- Pin 6: DC (+)

Power

  • Input: 100.0 - 240.0 VAC to terminal block, 50 - 60 Hz, internal power supply
  • Power output per port: 30.0 W
  • PoE power budget: 85.0 watts (max.)
  • Power consumption: 95.0 W (max.)

Physical

  • IP65-rated plastic housing (weatherproof/rainproof)
  • Net weight: 950 g (2.09 lbs.)
  • Gross weight: 1.42 kg (3.13 lbs.)

Environmental

  • Operating temperature: -20 to 60°C (-4 to 140°F)
  • Storage temperature: -20 to 70°C (-4 to 158°F)
  • Operating humidity: up to 90% RH, non-condensing
  • Storage humidity: up to 95% RH, non-condensing

Package Contents

  • Outdoor 10-Port L2+ Smart Managed PoE+ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks
  • Power cable, 1.5 m (5 ft.)
  • Instructions

Dimensions (L x W x H): 11.61 x 8.11 x 1.97 inches
