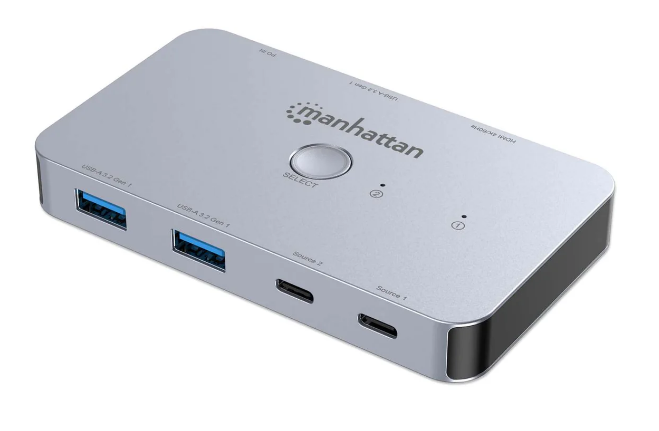

Manhattan 2-Port HDMI USB-C KVM Switch 4K@60Hz with Power Delivery, Part# 154390

The efficient  Manhattan 1543902-Port HDMI USB-C KVM Switch 4K@60Hz with Power Delivery has Two USB-C Host Ports, Two USB-A and One HDMI Output Ports, Dual 100 W Power Delivery, One USB-A Peripheral Port (up to 5 Gbps), Aluminum,in color Gray.

Features:

• Controls two USB-C equipped devices from a single USB-A keyboard, mouse, and HDMI monitor
• Switching via top-mount select button
• Charges one laptop with USB Power Delivery (PD) up to 85 W or two laptops with up to 65 W and 20 W

Connections

• Console ports
  - 1 x HDMI 19-pin, female (for monitor)
  - 3 x USB-A 9-pin, female, 5 Gbps (for mouse, keyboard, and peripherals)

• Computer/host ports
  - 2 x USB-C 24-pin, female

• Other
  - 1 x USB-C 16-pin, female (PD input as power supply)


• USB-C PD charging port: 100.0 W input / 85.0 W output max.
  - Voltage/current settings (max.):
  - 5.0 V / 3.0 A
  - 9.0 V / 3.0 A
  - 15.0 V / 3.0 A
  - 20.0 V / 5.0 A

• Single USB-C port use: up to 85.0 W output, Dual USB-C port use: up to 65.0 W and 20.0 W output



Protection Characteristics

• Short-circuit (SCP)

• Overvoltage (OVP) with auto-recovery mode

• Overcurrent (OCP) — current limit: 130% (max)



LEDs

• Source1

• Source2



Physical

• Aluminum housing


Dimensions (L x W x H): 4.92 x 2.76 x 0.55 inches
