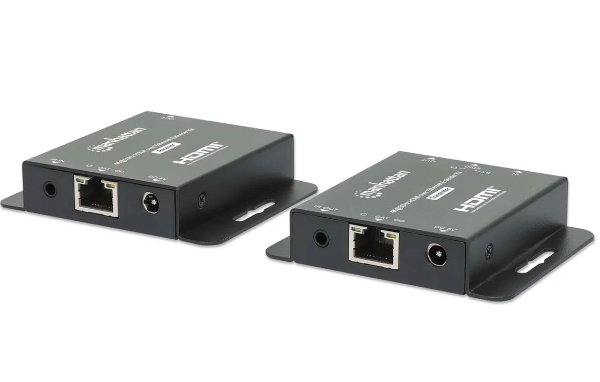

Manhattan 4K@30Hz HDMI over Ethernet Extender Kit, Part# 168373
power over ethernet

Manhattan 4K@30Hz HDMI over Ethernet Extender Kit, Part# 168373

Availability: In Stock
$80.64
Wishlist Compare

The quality Manhattan 168373 4K@30Hz HDMI over Ethernet Extender Kit extends a 4K@30Hz HDMI Signal up to 40 m or a 1080p@60Hz HDMI Signal up to 70 m over a Single Cat6 Ethernet Cable, Transmitter and Receiver, and power over Cable (PoC), in color Black.

Features:

  • Extends an HDMI signal up to 70 m (230 ft.) from an HDMI source to a display using one Cat6 Ethernet cable
  • Resolutions up to 4K@30Hz at 40 m (130 ft.) or up to 1080p@60Hz at 70 m (230 ft.)
  • HDMI loop-out on the transmitter to connect a display near the source for easier setup

Specifications:

Standards and Certifications

  • HDCP 1.4
  • HDMI 1.4
  • CE
  • FCC
  • RoHS
  • UKCA

General

  • Supported resolutions: 480p/720p/1080i/1080p/4K (Cat6 or higher Ethernet cable recommended for maximum distance and resolution)
  • Max. video bandwidth: 10.2 Gbps/340 MHz

Connections/buttons

  • Transmitter
    - 2 x HDMI female 19-pin (one loop-out for local display)
    - 1 x DC 5.0 V input
    - 1 x RJ45 female
    - 1 x 3.5 mm IR female
    - 1 x EDID switch
  • Receiver
    - 1 x HDMI female 19-pin
    - 1 x DC 5.0 V input
    - 1 x RJ45 female
    - 1 x 3.5 mm IR female

Electrical

  • Two DC power adapters
    - Input: 100.0 - 240.0 VAC, 50 - 60 Hz
    - Output: 5.0 VDC; 1.0 A
  • Power consumption max.: 1.86 W (transmitter) / 0.87 W (receiver)

Signal Input/Output

  • Input video signal: 3.3 V p-p
  • Input DDC signal: 5.0 V p-p
  • Output video: HDCP 1.4

Physical

  • Net weight: 262 g (0.58 lbs.)
  • Gross weight: 560 g (1.23 lbs.)
  • Housing: metal

Operating Environment

  • Operation temperature: 0 - 40°C (32 - 104°F)
  • Storage temperature: -20 - 60°C (-4 - 140°F)
  • Humidity (non-condensing): 20 - 90%

Package Contents

  • 4K@30Hz HDMI over Ethernet Extender Kit
  • Two DC power adapters with 1.5 m (5 ft.) cable
  • Two IR connection cables, 1.5 m (5 ft.)
  • Instructions

Dimensions: 3.15 x 2.72 x 0.67 inches
