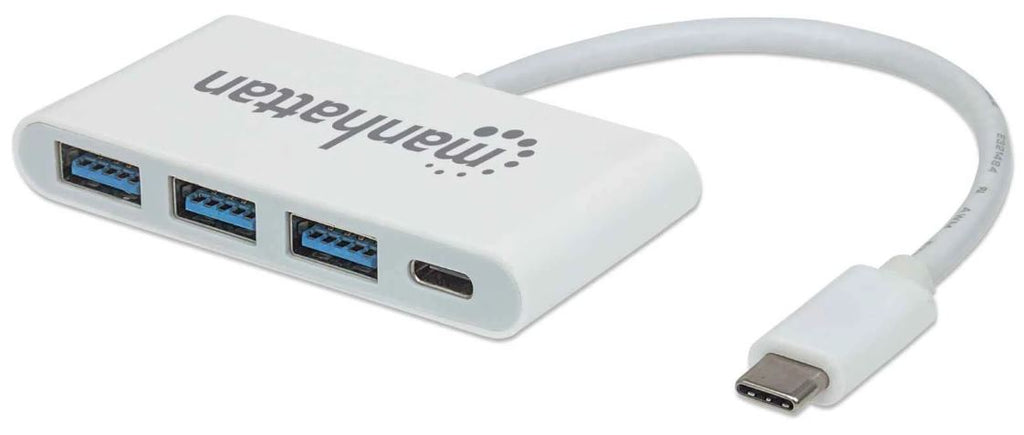

Manhattan SuperSpeed USB-C 3.1 Gen 1 Type-C Hub with Power Delivery, Part# 163552

Manhattan SuperSpeed USB-C 3.1 Gen 1 Type-C Hub with Power Delivery, Part# 163552

Availability: In Stock
$37.04
Wishlist Compare

USB Type-C Male to Three Type-A Ports Female and One Type-C Power-Delivery Port Female

  • Provides a Type-C device with three SuperSpeed USB Type-A ports for additional peripherals
  • USB-A ports support SuperSpeed (5 Gbps) data transmission, charging up to 5V/1A
  • Bus powered / USB-C port charges host device and hub with USB Power Delivery (PD) using device's existing power supply
  • Overcurrent protection; hot-swappable
  • Plug and play



Standards and Certifications

  • USB
  • FCC
  • CE
  • RoHS2
  • WEEE
  • USB Power Delivery (PD) 2.0

General

  • Data transfer speeds: 5 Gbps
  • One upstream port with built-in cable, standard Type-C male
  • Three downstream ports, standard Type-A female
  • One downstream port, standard Type-C female
  • Up to 1A total power output
  • Bus powered
  • Overcurrent protection

Connections

  • USB Type-C, 24-pin, male
  • Three USB Type-A, 4-pin, female
  • Output power 5V / 1A
  • One USB Type-C, 24-pin, female
  • USB Power Delivery, no data transfer capabilities

Physical

  • 24-AWG cable gauge
  • Cable Length: 20 cm (8 in.)
  • Withstanding voltage: 300 VDC
  • Insulation resistance: 10 MΩ
  • Conductive resistance: 5 Ω
  • Housing: ABS plastic
  • Shielded

Package Contents

  • SuperSpeed USB 3.1 Gen 1 Type-C Hub with Power Delivery
  • Quick Instruction Guide



Also write A minimum order amount of $50 is required in order to Maintain Wholesale Price


NEW IN THE BOX
