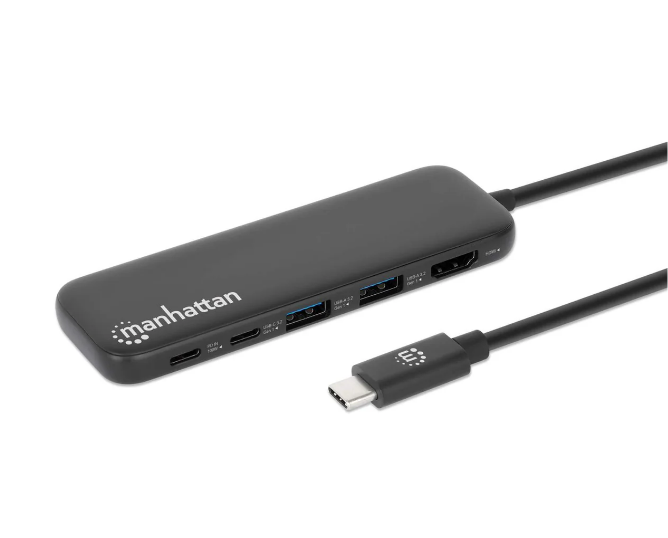

Manhattan USB-C Docking Station with 100 W PD / 4K HDMI 5-in-1 Multiport USB Hub, Part# 130721
USB Hubs & Converters

Manhattan USB-C Docking Station with 100 W PD / 4K HDMI 5-in-1 Multiport USB Hub, Part# 130721

Availability: In Stock
$25.10
Wishlist Compare

The efficient Manhattan 130721 USB-C Docking Station with 100 W PD / 4K HDMI 5-in-1 Multiport USB Hub is a USB 3.2 Gen 1 Type-C Male to One HDMI Port (4K@30Hz), Two USB-A Ports (up to 5 Gbps), USB-C Power Delivery Port (100 W) and USB-C Data Port (5 Gbps), in color Black.

Features:

  • Connects your laptop to your HDMI monitor and peripherals with an optional charging input
  • One HDMI port with resolutions up to Ultra-High-Definition (UHD) 4K@30Hz (3840×2160)
  • Charges your laptop with USB Power Delivery (PD) up to 85 W; requires an external PD charger - available from Manhattan

SPECIFICATIONS:

Standards and Certifications

  • USB 3.2 Gen 1
  • HDMI 1.4
  • HDCP 1.4
  • CE
  • FCC
  • RoHS
  • REACH
  • UKCA

General

  • Max. video resolution: 4K (3840 x 2160 pixels) at 30 Hz
  • USB-A ports data transfer speed: 5 Gbps; charging: 2.5 W (5 V / 0.5 A) max.
  • USB-C port data transfer speed: 5 Gbps
  • Bus-powered operation (except charging functions)
  • USB-C PD charging port: 100.0 W input / 85.0 W output max.
    - Voltage/current settings (maximum):
    - 5.0 V / 3.0 A
    - 9.0 V / 3.0 A
    - 15.0 V / 3.0 A
    - 20.0 V / 5.0 A

Connections

  • One USB-C 24-pin, male
  • One HDMI 19-pin, female
  • Two USB-A 9-pin, female
  • One USB-C 24-pin, Power Delivery, female
  • One USB-C 24-pin, data only, female

Physical

  • Net weight: 0.13 lbs. (60 g)
  • Gross weight: 0.2 lbs. (90 g)
  • Cable length: 20 in. (50 cm)
  • Cable diameter: 34 AWG
  • Plastic housing

Dimensions (L x W x H): 4.8 x 1.61 x 0.39 in. (122 x 41 x 10 mm)



"A minimum order amount of $50 is required in order to Maintain Wholesale Price"

NEW IN THE BOX
