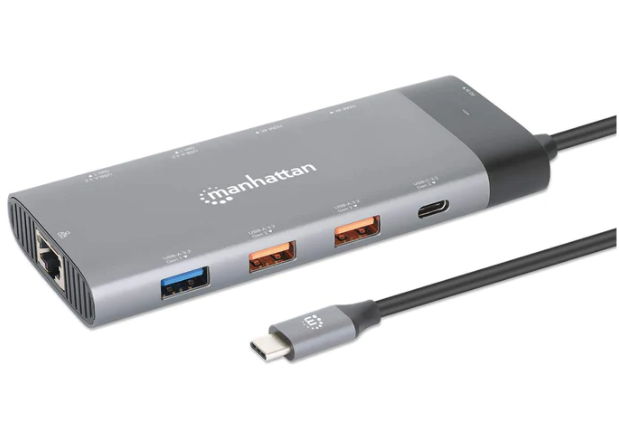

Manhattan USB-C PD 10-in-1 Dual Monitor 8K Docking Station / Multiport Hub, Part# 130714
Adapters

Manhattan USB-C PD 10-in-1 Dual Monitor 8K Docking Station / Multiport Hub, Part# 130714

Availability: In Stock
$111.23
Wishlist Compare

The quality Manhattan 130714 USB-C PD 10-in-1 Dual Monitor 8K Docking Station / Multiport Hub is a USB 3.2 Gen 2 Type-C Male to Two HDMI Ports (up to 8K@30Hz / 4K@60Hz), Five USB-A Ports (up to 10 Gbps), USB-C Power Delivery Port (85 W), USB-C Data Port (10 Gbps), and Gigabit RJ45 Port, Aluminum, in color Space Gray.

Features:

  • Connects your laptop to your displays, network, and peripherals while charging your devices
  • Two HDMI ports with resolutions on single-video output up to 8K@30Hz or dual-video output up to 4K@60Hz
  • Supports display mode Fully Extended (different images on laptop, monitor 1 and 2) on Windows®; supports Mirror or Extended Mirror (different image on laptop, same image on monitor 1 and 2) on Mac®



Specifications:

Standards and Certifications

  • DP 1.4 Alt Mode over USB-C
  • USB 3.2 Gen 2
  • USB 3.2 Gen 1
  • HDMI 2.1
  • HDCP 2.3
  • CE
  • FCC
  • RoHS
  • REACH
  • UKCA

General

  • Max. video resolutions:
    - If one video port is used, the max. resolution is 8K (7680 x 4320 pixels) at 30 Hz
    - If two video ports are used at a time, the max. resolution per display is 4K (3840 x 2160 pixels) at 60 Hz
  • USB-A ports 1 - 3 data transfer speed: 5 Gbps; charging: 2.5 W (5 V / 0.5 A) max.
  • USB-A ports 4 - 5 data transfer speed: 10 Gbps; charging: 2.5 W (5 V / 0.5 A) max.
  • USB-C port data transfer speed: 10 Gbps
  • Bus-powered operation (except charging functions)
  • USB-C PD charging port: 100.0 W input / 85.0 W output max.
    - Voltage/current settings (maximum):
    - 5.0 V / 5.0 A
    - 9.0 V / 5.0 A
    - 12.0 V / 5.0 A
    - 15.0 V / 5.0 A
    - 19.0 V / 5.0 A
    - 20.0 V / 5.0 A

Connections

  • One USB-C 24-pin, male
  • Two HDMI 19-pin, female
  • One 10/100/1000 Mbps RJ45, female
  • Five USB-A 9-pin, female
  • One USB-C 24-pin, Power Delivery, female
  • One USB-C 24-pin, data only, female

Physical

  • Aluminum housing
  • Cable length: 60 cm (24 in.)
  • Cable diameter: 34 AWG

Dimensions: 5.12 (L) x 2.13 (W) x 0.67 (H) [inches]



"A minimum order amount of $50 is required in order to Maintain Wholesale Price"

NEW IN THE BOX
