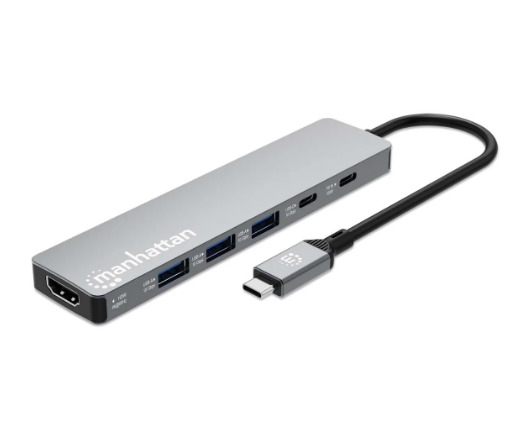

Manhattan USB-C PD 6-in-1 HDMI 4K Docking Station / Multiport Hub, MDS-6P-SM4K60, Part# 190480
Network accessory

Manhattan USB-C PD 6-in-1 HDMI 4K Docking Station / Multiport Hub, MDS-6P-SM4K60, Part# 190480

Availability: In Stock
$33.68
Wishlist Compare

The efficient Manhattan 190480 USB-C PD 6-in-1 HDMI 4K Docking Station / Multiport Hub, MDS-6P-SM4K60 is a USB 3.2 Gen 2 Type-C Male to HDMI (4K@60Hz), Three USB-A (10 Gbps), USB-C Power Delivery (100 W) and USB-C Data (10 Gbps), Aluminum, in color Space Gray.

Features:

  • Connects your USB-C device to an HDMI display and USB peripherals while charging it with Power Delivery
  • One HDMI port with resolutions up to Ultra-High-Definition (UHD) 4K@60Hz (3840×2160)
  • Three USB 3.2 Gen 2 Type-A ports with SuperSpeed+ transfer rates up to 10 Gbps and charging up to 7.5 W (5 V / 1.5 A)
  • USB-A ports to connect mice, keyboards, flash drives and more or to charge and sync mobile devices
  • One USB 3.2 Gen 2 Type-C data-only port with transfer rates up to 10 Gbps, great for synchronizing mobile devices
  • Charges your laptop with USB Power Delivery (PD) up to 100 W; requires an external PD charger - available from Manhattan
  • Compatible with all USB-C DP-Alt-Mode-supported laptops, tablets, and notebooks including Apple® MacBook®, Chromebook™, and more
  • Compliant with DisplayPort 1.4 Alternate Mode (DP Alt Mode)
  • Lets your smartphone work like a desktop PC while also charging it (desktop setup requires devices that support DP Alt Mode and video output over USB-C)
  • Plug-and-play installation; Windows®, macOS®, Android™, iOS®, Chrome OS®, iPadOS®, and Linux® compatible
  • Supports PD 3.0 Fast Role Swap (FRS) - the connection between the docking station and laptop is not interrupted when the charger is unplugged
  • Sturdy, sleek aluminum housing, great for both desktop and travel
  • Compatible with USB4® and Thunderbolt™ 3 / 4 interfaces
  • USB ports backward compatible with USB 3.0, USB 2.0, and USB 1.1
  • Fully HDCP 2.3 compliant, backward compatible
  • Three-year warranty



Specifications:

Standards and Certifications

  • DP 1.4 Alt Mode over USB-C
  • USB 3.2 Gen 2
  • HDMI 2.0
  • HDCP 2.3
  • PD 3.0
  • CE
  • FCC
  • RoHS
  • REACH
  • UKCA

General

  • Available video resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K@30Hz, 4K@60Hz
  • USB-A port data transfer speed: 10 Gbps
  • USB-C port data transfer speed: 10 Gbps
  • Bus powered operation (except charging functions)
  • USB-A charging: 7.5 W (5.0 V at 1.5 A) max.
  • USB-C PD charging port: 100.0 W (20.0 V at 5.0 A) max.
    - Voltage/current settings (maximum):
    - 5.0 V / 3.0 A / 15.0 W
    - 9.0 V / 3.0 A / 27.0 W
    - 12.0 V / 3.0 A / 36.0
    - 15.0 V / 3.0 A / 45.0 W
    - 20.0 V / 5.0 A / 100.0 W

Connections

  • One USB-C 24-pin, male
  • One USB-C 16-pin, Power Delivery, female
  • One USB-C 24-pin, data only, female
  • Three USB-A 9-pin, female
  • One HDMI 19-pin, female

Physical

  • Cable length: 15 cm (6 in.)
  • Cable OD: 4.5 mm (0.18 in.)
  • Net weight: 61 g (0.12 lbs.)
  • Gross weight: 95 g (0.18 lbs.)
  • Aluminum housing

Operating Environment

  • Operation and storage temperature: 0 to 50°C (32 to 122°F)
  • Humidity (non-condensing): 0 to 85% RH

System Requirements

  • Windows 7/8.1/10/11, Chrome OS, macOS, iPadOS, iOS, Android or Linux

Package Contents

  • USB-C PD 6-in-1 Docking Station / Multiport Adapter for One HDMI Monitor
  • Instructions



Dimensions (L x W x H): 5.31 x 1.26 x 0.43 inches



A minimum order amount of $50 is required in order to Maintain Wholesale Price

NEW IN THE BOX
