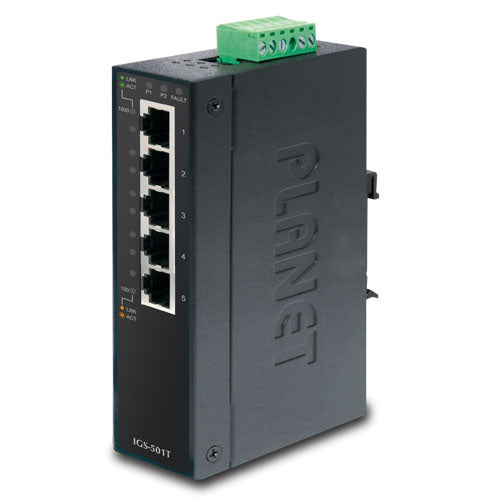

PLANET IGS-501T IP30 Slim type 5-Port Industrial Gigabit Ethernet Switch (-40 to 75 degree C), Stock# IGS-501T
Planet

PLANET IGS-501T IP30 Slim type 5-Port Industrial Gigabit Ethernet Switch (-40 to 75 degree C), Stock# IGS-501T

Availability: In Stock
$140.36
Wishlist Compare

Product features


PLANET IGS-501T This is an IP30 Slim type 5-Port Industrial Gigabit Ethernet Switch which can operate under a temperature of -40 to 75 degree C. This is equipped with 5 10/100/1000Mbps auto negotiation ports which provides providing non-blocking switch fabric and wire-speed throughput as high as 10Gbps and the 2K MAC Address table and can perfomrs wire-speed packets transfer without risk of packet loss.

Layer 2 Features
γ€€γ€€ Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
γ€€γ€€γ€€Ethernet standard
γ€€γ€€ Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
γ€€γ€€ High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering
γ€€γ€€γ€€eliminates erroneous packets to optimize the network bandwidth
γ€€γ€€ Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control
γ€€γ€€γ€€(full-duplex)
γ€€γ€€ Backplane (Switching Fabric): 10Gbps
γ€€γ€€ Integrated address look-up engine, support 2K absolute MAC addresses
γ€€γ€€ 1M Bits on-chip buffer memory
γ€€γ€€ 9K Jumbo packet size support
γ€€γ€€ Automatic address learning and address aging
γ€€γ€€ CSMA/CD Protocol

Industrial Case / Installation
γ€€γ€€ IP-30 metal case / protection
γ€€γ€€ DIN rail and wall mount design
γ€€γ€€ 12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power, AC 24V power support
γ€€γ€€ Supports EFT protection 6000 VDC for power line
γ€€γ€€ Supports 6000 VDC Ethernet ESD protection
γ€€γ€€ -40 to 75 degrees C operating temperature


NEW IN THE BOX
One Year Warranty
