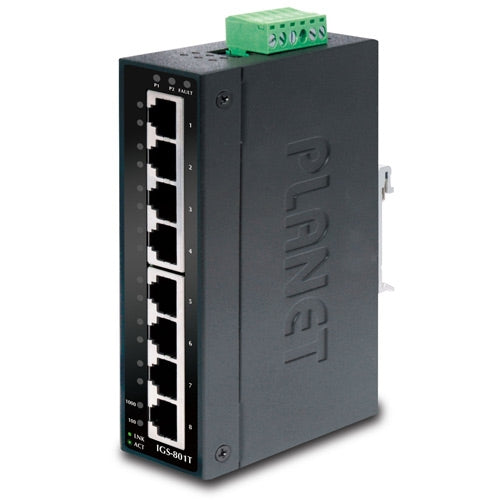

PLANET IGS-801T IP30 Slim type 8-Port Industrial Gigabit Ethernet Switch (-40 to 75 degree C), Stock# IGS-801T
Planet

PLANET IGS-801T IP30 Slim type 8-Port Industrial Gigabit Ethernet Switch (-40 to 75 degree C), Stock# IGS-801T

Availability: In Stock
$188.76
Wishlist Compare

Product features


PLANET IGS-801T This is an IP30 Slim type 8-Port Industrial Gigabit Ethernet Switch which can operate from a temperature of -40 to 75 degree C that allows either DIN rail or wall mounting for efficient use of cabinet space. It is equipped with 8 10/100/1000Mbps auto negotiation ports and operates reliably in heavy industrial demanding environments and has an integrated power supply with range of voltages from 12 to 48V DC.

Layer 2 Features
 Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard
 Supports auto negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
 High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
 Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
 Backplane (Switching Fabric): 16Gbps
 Integrated address look-up engine, support 8K absolute MAC addresses
 176 kilobytes on-chip frame buffer
 9K Jumbo packet size support
 Automatic address learning and address aging
 CSMA/CD Protocol

Industrial case / installation
 IP-30 metal case / protection
 DIN rail and wall mount design
 12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
 Supports EFT protection 6000 VDC for power line
 Supports 6000 VDC Ethernet ESD protection
 -40 to 75 degrees C operation temperature

NEW IN THE BOX
One Year Warranty
