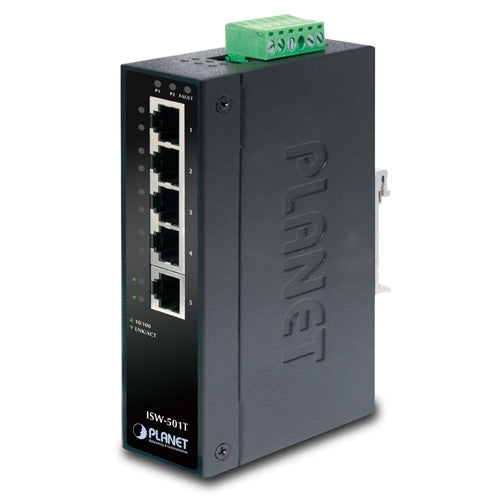

PLANET ISW-501T IP30 Slim Type 5-Port Industrial Fast Ethernet Switch (-40 to 75 degree C), Stock# ISW-501T
Planet

PLANET ISW-501T IP30 Slim Type 5-Port Industrial Fast Ethernet Switch (-40 to 75 degree C), Stock# ISW-501T

Availability: In Stock
$94.83
Wishlist Compare

Product features


PLANET ISW-501T This is an IP30 Slim Type 5-Port Industrial Fast Ethernet Switch that can operate from a temperature of -40 to 75 degree C. This is equipped with five 10/100Mbps auto negotiation ports and operates reliably in heavy industrial demanding environments. This has an integrated power supply source with wide range of voltages (12 to 48V DC).

Layer 2 Features
Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX Ethernet standard
Supports auto negotiation and 10/100Mbps half / full duplex mode
High performance Store and Forward architecture, broadcast storm control, runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Backplane (Switching Fabric):1Gbps
Integrated address look-up engine, supporting 2K absolute MAC addresses
Automatic address learning and address aging
CSMA / CD Protocol

Industrial case / installation
IP30 metal case
DIN rail and wall mount design
12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
Supports EFT protection 6000V DC for power line
Supports 6000V DC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Free fall, shock, vibration industrial stability

NEW IN THE BOX
One Year Warranty
