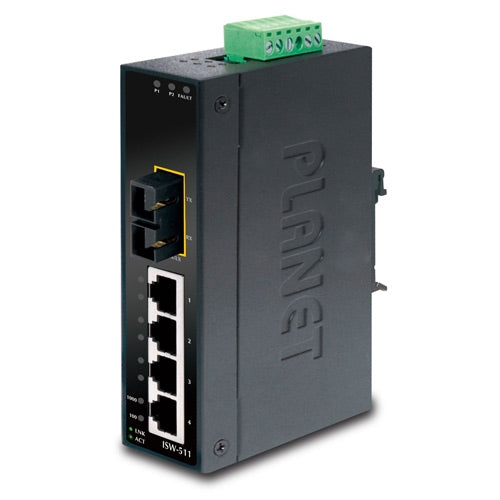

PLANET ISW-511 IP30 Slim Type 4-Port Industrial Ethernet Switch + 1-Port 100Base-FX(SC) (-10 - 60 C), Stock# ISW-511
Planet

PLANET ISW-511 IP30 Slim Type 4-Port Industrial Ethernet Switch + 1-Port 100Base-FX(SC) (-10 - 60 C), Stock# ISW-511

Availability: In Stock
$139.76
Wishlist Compare

Product features


PLANET ISW-511 This is an IP30 Slim Type 4-Port Industrial Ethernet Switch + 1-Port 100Base-FX(SC) (-10 - 60 C) which is equipped with 4 10/100Base-TX auto-negotiation ports and has one 100Base-FX multi-mode SC interface for transmission distance up to 2km, and the ISW-511S15 has one 100Base-FX single-mode SC interface for transmission distance up to 15km. It has 12 to 48V DC power supply and capable of providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps. With the flow Control function it allows a fast and reliable data transfer.

Layer 2 Features
 Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
 Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
 High performance Store and Forward architecture
 Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
 Backplane (Switching Fabric): 1Gbps
 Integrated address look-up engine, support 2K absolute MAC addresses
 1 Mbit on-chip frame buffer
 Automatic address learning and address aging
 CSMA/CD Protocol

Industrial Case / Installation
 IP-30 metal case / protection
 DIN rail and wall mount design
 12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
 Supports EFT protection 6000 VDC for power line
 Supports 6000 VDC Ethernet ESD protection
 -10 to 60 degrees C operating temperature

NEW IN THE BOX
One Year Warranty
