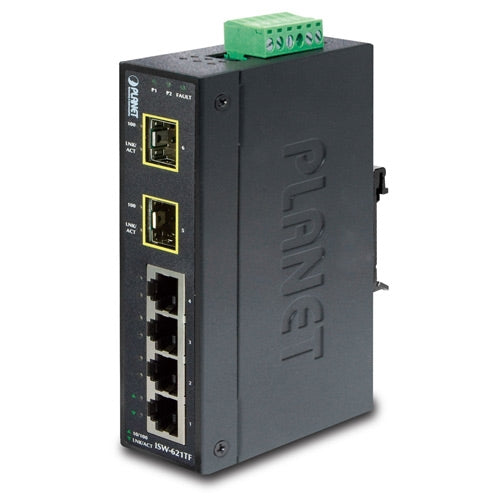

PLANET ISW-621TF IP30 Slim Type 4-Port Industrial Ethernet Switch + 2-Port SFP Fiber (-40 - 75 C), Stock# ISW-621TF
Planet

PLANET ISW-621TF IP30 Slim Type 4-Port Industrial Ethernet Switch + 2-Port SFP Fiber (-40 - 75 C), Stock# ISW-621TF

Availability: In Stock
$129.77
Wishlist Compare

Product features


PLANET ISW-621TF this is an IP30 Slim Type 4-Port Industrial Ethernet Switch + 2-Port SFP Fiber which can operate under WIDE-TEMPERATURE environment ranging from -40 up to 75 degrees C. This has two 100Base-FX SFP slots each of which is mini-GBIC 100Base-FX SFP (Small-Form Factor Pluggable) interfaces supported. It can be deloyed from 2 kilometers (via multi-mode fiber) up to above 60 kilometers (via single-mode fiber) providing flexibility for Transportation, Manufacturing, Security and Surveillance.

Industrial Case / Installation
 IP30 metal case protection
 DIN rail and wall mount design
 12 to 48V DC, redundant power with polarity reverse protection and connective removable terminal
  block for master and slave power
 Supports EFT protection 6KV DC for power line
 Supports 6KV DC Ethernet ESD protection
 -40 to 75 degrees C wide operating temperature

Layer 2 Features
 Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
 Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
 High performance Store and Forward architecture
 Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
 Backplane (Switching Fabric): 1.2Gbps
 Integrated address look-up engine, supporting 2K absolute MAC addresses
 1Mbit on-chip frame buffer
 Automatic address learning and address aging
 CSMA/CD Protocol


NEW IN THE BOX
One Year Warranty
